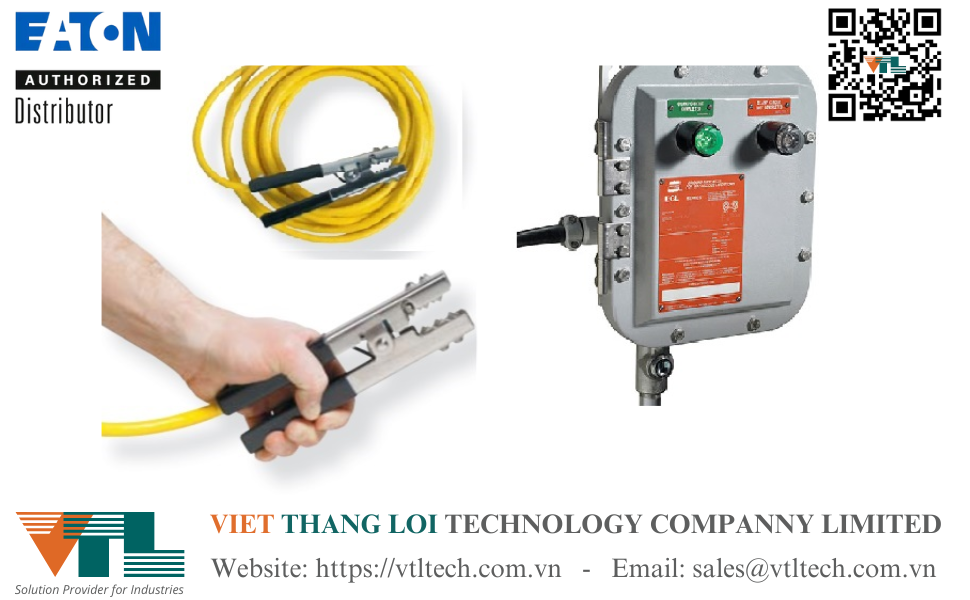

Thiết bị tiếp địa xe bồn Eaton EGL

Thiết bị tiếp địa chống cháy nổ Eaton Crouse-Hind EGL dùng để tiếp địa cho xe bồn chở xăng dầu hay nguyên liệu dễ cháy nổ trong khi tiếp nhận nhiên liệu tại các trạm bơm. Đảm bảo việc chuyển sản phầm an toàn với việc kết hợp với hệ thống bơm tự động.

Certifications and compliances

  • Class I, Divisions 1 & 2, Groups B, C, D
  • Class I, Zones 1 & 2, IIB + H2
  • Class II, Division 1, Groups E, F, G
  • Class II, Division 2, Groups F, G
  • Class III
  • UL/cUL Listed
  • IP65
  • NEMA 3, 4X, 7BCD, 9FG, 12
Design features
  • Static ground verification system provides ground path for static build-up to ensure safe product transfer
  • Integrated control relay allows for safe control of electrically operated pumps or valves, and for energizing remote indicators
  • Stainless steel clamp for grounding connection provides industrial durability, corrosion resistance and increased product lifetime
  • Interior and exterior epoxy powdered paint finish provides superior corrosion resistance inside and out
  • LED pilot lights provide long-lasting visual identification of status of ground connection
  • ECD Type 4X drain protects interior equipment from environmental moisture and condensation, rain water and hose down applications
  • NEMA 4X compact, hose-tight and corrosion-resistant enclosure offers years of service in harsh industrial environments
  • 25 ft. safety fluorescent yellow cord is easily identifiable to ensure safety and reduce tripping hazard
  • Neoprene cover gasket provides a watertight seal to meet UL Type 4 (NEMA 4) requirements
  • Stainless steel hinges are corrosion-resistant while providing safe and easy access to interior of enclosure
  • Waterguard™ desiccant packet absorbs and removes water/moisture and protects the enclosed equipment when not energized
  • Adjustable mounting feet provide ease of mounting during installation

Standard materials

  • Enclosure – opper-free aluminum with interior and exterior epoxy powder coat
  • Clamp – stainless steel
  • Clamp grips – polyvinylchloride dipped
  • Gasket – neoprene
