Đèn chống cháy nổ Eaton Crouse-Hinds CEAG nLLK 15 LED.

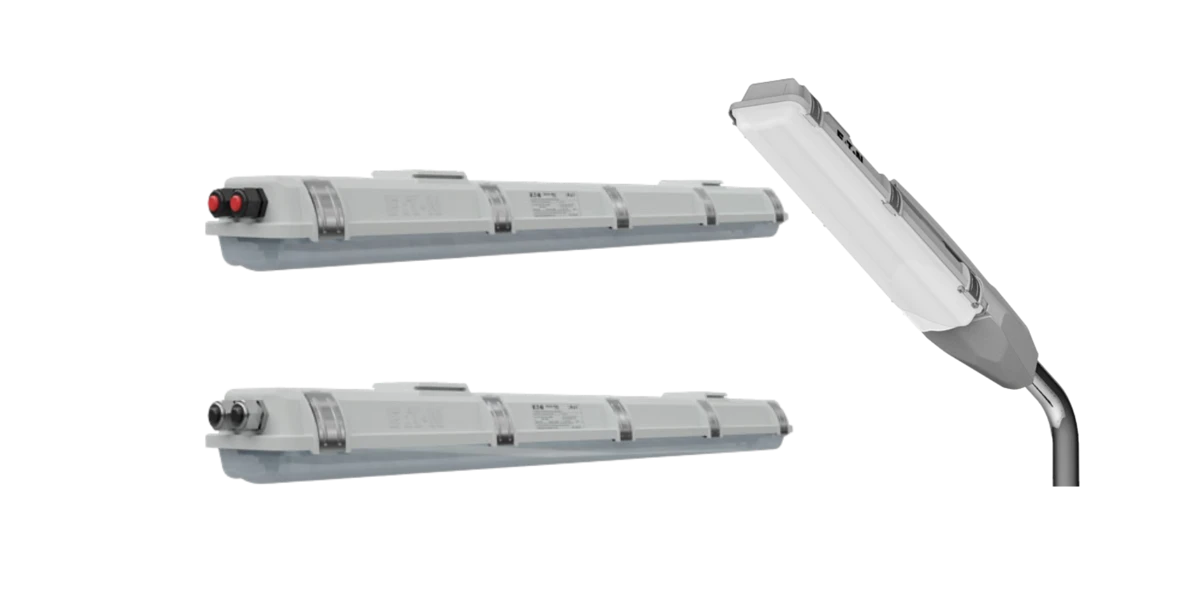

Đèn chống cháy nổ Eaton Crouse-Hinds CEAG nLLK 15 LED Non-metallic
Đèn chống cháy nổ Eaton Crouse-Hinds CEAG nLLK 15 LED Non-metallic
Đèn LED Crouse-Hinds series nLLK 15 sử dụng ống LED tuổi thọ cao, cung cấp chiếu sáng chung cho cả trong nhà và ngoài trời, phù hợp lắp đặt tại các khu vực nguy hiểm theo tiêu chuẩn IEC Zone 2 và Zone 22 trên toàn cầu.
Đèn nLLK 15 LED được chứng nhận sử dụng trong các khu vực chống cháy nổ (Ex) có khí và bụi dễ cháy nổ. Kết cấu phi kim loại, chịu tải nặng giúp đèn đáp ứng tốt các yêu cầu khắt khe về cơ học và môi trường, là lựa chọn lý tưởng cho những nơi có bụi, bẩn, khí, hơi, khói, hơi hóa chất, độ ẩm cao, môi trường ăn mòn và điều kiện ẩm ướt.
Ngoài ra, đèn LED tuyến tính nLLK 15 còn có thể kết nối với hệ thống giám sát đèn chiếu sáng khẩn cấp CEAG.
Safety | Durability | Reliability |
Zones 2 and 22 | Corrosion-resistant construction | IP66 protection |
Certifications and Compliances
IEC/EN standards
EC-Declaration of Conformity: CCH 15 ATEX 1044
Marking accd. to 2014/34/EU and 2014/34/EU: Ex II 3 G Ex ec IIC T4 Gc; Ex II 3 D Ex tc IIIC T80°C Dc
Design Features
Replaceable driver and light source
Cost-efficient installation due to single-sided through wiring and large terminal compartment
High lumen output
High degree of protection – IP66
Available with safety switch on request
Connection to CEAG emergency light monitoring systems possible (V-CG-S)
Light controlling via DALI interface as option (DALI)
Standard Materials
Housing – fiberglass-reinforced polyester
Lens – polycarbonate
Gasket – silicone
Model | Specifications / Description |
|---|---|
13475208001 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.088A, 1 x M25 plastic gland, 1 x M25 threaded plug, RAL 7035 light grey finish, Polycarbonate cover, 2000 lm, GRP, 1 x 6 terminals, Through wiring single-ended, 220-240 Vac/Vdc, 2 x 8W |
13475208011 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.088A, 2 x M25 plastic glands, 2 x M25 threaded plugs, RAL 7035 light grey finish, Polycarb cover, 2000 lm, GRP, 1 blanking plug, 2 x 6 terminals, Twin ended, 220-240 Vac/Vdc, 2 x 8W |
13475208021 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.088A, 2 x M20 metal thread, 1 x M20 threaded plug, RAL 7035 light grey finish, Polycarbonate cover, 2000 lm, GRP, 1 x 6 terminals, Through wiring single-ended, 220-240 Vac/Vdc, 2 x 8W |
13475208031 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.088A, 4 x M20 metal thread, 2 x M20 threaded plugs, RAL 7035 light grey finish, Polycarbonate cover, 2000 lm, GRP, 2 x 6 terminals, Through wiring twin ended, 220-240 Vac/Vdc, 2 x 8W |
13475217001 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.176A, 1 x M25 plastic gland, 1 x M25 threaded plug, RAL 7035 light grey finish, Polycarbonate cover, 4000 lm, GRP, 1 x 6 terminals, Through wiring single-ended, 220-240 Vac/Vdc, 2 x 17W |
13475217011 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.176A, 2 x M25 plastic glands, 2 x M25 threaded plugs, RAL 7035 light grey finish, Polycarb cover, 4000 lm, GRP, 1 blanking plug, 2 x 6 terminals, Twin ended, 220-240 Vac/Vdc, 2 x 17W |
13475217021 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.176A, 2 x M20 metal thread, 1 x M20 threaded plug, RAL 7035 light grey finish, Polycarbonate cover, 4000 lm, GRP, 1 x 6 terminals, Through wiring single-ended, 220-240 Vac/Vdc, 2 x 17W |
13475217031 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.176A, 4 x M20 metal thread, 2 x M20 threaded plugs, RAL 7035 light grey finish, Polycarbonate cover, 4000 lm, GRP, 2 x 6 terminals, Through wiring twin ended, 220-240 Vac/Vdc, 2 x 17W |
13475217101 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.188A, 1 x M25 plastic gland, 1 x M25 threaded plug, RAL 7035 light grey finish, Polycarb cover, 4000 lm, GRP, Emerg monitoring system, 1 x 6 terminals, Single-ended, 220-240Vac/Vdc, 2x17W |
13475217111 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.188A, 2 x M25 plastic glands, 2 x M25 threaded plugs, RAL 7035 light grey, Polycarb cover, 4000 lm, GRP, Emerg monitoring, 1 blanking plug, 2x6 terminals, Twin end, 220-240Vac/Vdc, 2x17W |
13475217121 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.188A, 2 x M20 metal thread, 1 x M20 threaded plug, RAL 7035 light grey finish, Polycarb cover, 4000 lm, GRP, Emerg monitoring, 1 x 6 terminals, Single-ended, 220-240 Vac/Vdc, 2 x 17W |
13475217131 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.188A, 4 x M20 metal thread, 2 x M20 threaded plugs, RAL 7035 light grey finish, Polycarb cover, 4000 lm, GRP, Emerg monitoring, 2 x 6 terminals, Twin ended, 220-240 Vac/Vdc, 2 x 17W |
13475217211 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.176A, 2xM25 plastic glands, 2xM25 threaded plugs, RAL 7035 light grey, Polycarb cover, 4000 lm, GRP, Control interface, 1 blanking plug, 2x6 terminals, Twin ended, 220-240Vac/Vdc, 2x17W |
13475217401 | Eaton Crouse-Hinds series CEAG nLLM 15 linear LED light fixture, 0.088A, 1 x M25 plastic cable gland, RAL 7035 light grey finish, Polycarbonate cover, 2000 lm, GRP, 1 x 3 terminals, 220-240 Vac/Vdc, 2 x 8W |
13475223001 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.237A, 1 x M25 plastic gland, 1 x M25 threaded plug, RAL 7035 light grey finish, Polycarbonate cover, 5000 lm, GRP, 1 x 6 terminals, Through wiring single-ended, 220-240 Vac/Vdc, 2 x 23W |
13475223011 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.237A, 2 x M25 plastic glands, 2 x M25 threaded plugs, RAL 7035 light grey finish, Polycarb cover, 5000 lm, GRP, 1 blanking plug, 2 x 6 terminals, Twin ended, 220-240 Vac/Vdc, 2 x 23W |
13475223021 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.237A, 2 x M20 metal thread, 1 x M20 threaded plug, RAL 7035 light grey finish, Polycarbonate cover, 5000 lm, GRP, 1 x 6 terminals, Through wiring single-ended, 220-240 Vac/Vdc, 2 x 23W |
13475223031 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.237A, 4 x M20 metal thread, 2 x M20 threaded plugs, RAL 7035 light grey finish, Polycarbonate cover, 5000 lm, GRP, 2 x 6 terminals, Through wiring twin ended, 220-240 Vac/Vdc, 2 x 23W |
13475223211 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 0.237A, 2 x M25 plastic glands, 2 x M25 threaded plugs, RAL 7035 light grey finish, Polycarb cover, 5000 lm, GRP, 1 blanking plug, 2 x 6 terminals, Single-ended, 220-240 Vac/Vdc, 2 x 23W |
13480208001 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1030 emerg lm, 1 x M25 plastic gland, 1 x M25 threaded plug, RAL 7035 light grey finish, Polycarb cover, 2000 lm, GRP, 1.5 hour battery, 1 x 6 terminals, Single-ended, 220-240 Vac/Vdc, 22W |
13480208002 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1030 emerg lm, 2 x M20 metal thread, 1 x M20 threaded plug, RAL 7035 light grey finish, Polycarb cover, 2000 lm, GRP, 1.5 hour battery, 1 x 6 terminals, Single-ended, 220-240 Vac/Vdc, 22W |
13480208003 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1030 emerg lm, 1 x M25 plastic gland, 1 x M25 threaded plug, RAL 7035 light grey finish, Polycarbonate cover, 2000 lm, GRP, 3 hour battery, 1x6 terminals, Single-ended, 220-240Vac/Vdc, 22W |
13480208004 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1030 emerg lm, 2 x M20 metal thread, 1 x M20 threaded plug, RAL 7035 light grey finish, Polycarb cover, 2000 lm, GRP, 3 hour battery, 1 x 6 terminals, Single-ended, 220-240 Vac/Vdc, 22W |
13480217001 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1050 emerg lm, 1 x M25 plastic gland, 1 x M25 threaded plug, RAL 7035 light grey finish, Polycarb cover, 4000 lm, GRP, 1.5 hour battery, 1 x 6 terminals, Single-ended, 220-240Vac/Vdc, 40.5W |
13480217002 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1050 emerg lm, 2 x M20 metal thread, 1 x M20 threaded plug, RAL 7035 light grey finish, Polycarb cover, 4000 lm, GRP, 1.5 hour battery, 1 x 6 terminals, Single-ended, 220-240 Vac/Vdc, 40.5W |
13480217003 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1050 emerg lm, 1 x M25 plastic gland, 1 x M25 threaded plug, RAL 7035 light grey finish, Polycarb cover, 4000 lm, GRP, 3 hour battery, 1 x 6 terminals, Single-ended, 220-240 Vac/Vdc, 40.5W |
13480217004 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1050 emerg lm, 2 x M20 metal thread, 1 x M20 threaded plug, RAL 7035 light grey finish, Polycarb cover, 4000 lm, GRP, 3 hour battery, 1 x 6 terminals, Single-ended, 220-240 Vac/Vdc, 40.5W |
13481208011 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1030 emerg lm, 2 x M25 plastic glands, 2 x M25 threaded plugs, RAL 7035 light grey finish, Polycarb cover, 2000 lm, GRP, 1.5 hour battery, 2 x 6 terminals, Twin ended, 220-240 Vac/Vdc, 22W |
13481208012 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1030 emerg lm, 4 x M20 metal thread, 2 x M20 threaded plugs, RAL 7035 light grey finish, Polycarb cover, 2000 lm, GRP, 1.5 hour battery, 2 x 6 terminals, Twin ended, 220-240 Vac/Vdc, 22W |
13481208014 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1030 emerg lm, 4 x M20 metal thread, 2 x M20 threaded plugs, RAL 7035 light grey finish, Polycarb cover, 2000 lm, GRP, 3 hour battery, 2 x 6 terminals, Twin ended, 220-240 Vac/Vdc, 22W |
13481208011 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1030 emerg lm, 2 x M25 plastic glands, 2 x M25 threaded plugs, RAL 7035 light grey finish, Polycarb cover, 2000 lm, GRP, 1.5 hour battery, 2 x 6 terminals, Twin ended, 220-240 Vac/Vdc, 22W |
13481208012 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1030 emerg lm, 4 x M20 metal thread, 2 x M20 threaded plugs, RAL 7035 light grey finish, Polycarb cover, 2000 lm, GRP, 1.5 hour battery, 2 x 6 terminals, Twin ended, 220-240 Vac/Vdc, 22W |
13481208014 | Eaton Crouse-Hinds series CEAG nLLK 15 linear LED, 1030 emerg lm, 4 x M20 metal thread, 2 x M20 threaded plugs, RAL 7035 light grey finish, Polycarb cover, 2000 lm, GRP, 3 hour battery, 2 x 6 terminals, Twin ended, 220-240 Vac/Vdc, 22W |
