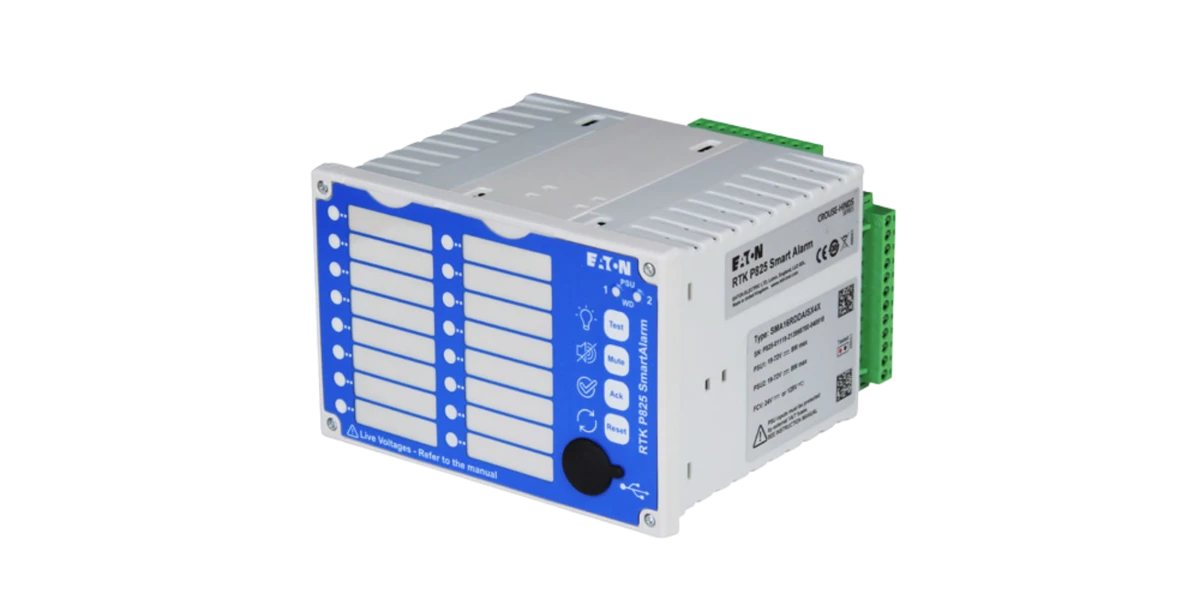

MTL P825 SmartAlarm Annunciator
The P825 SmartAlarm comes in three package sizes that offer one of the industry’s lowest operating power profiles for a similar device. Using the latest in componentry, our unique design offers flexibility in parameter configuration and low cost of ownership.
MTL P825 SmartAlarm Annunciator
Installation Ease
Compact DIN box design
Reliability
High intensity LEDs
Flexibility
Optional Modbus communications
Design Features
DIN size module with 8, 16 and 24 channel versions
Internally generated 24VDC signal supply, with options for powered inputs 24VDC, 125VAC/DC, 48VDC or 250VAC/DC
Pluggable LEDs in five colors: Red, Yellow, White, Blue and Green
Remote pushbutton inputs with mappable functions
Each channel fully software configurable via front panel USB port using intuitive setup utility
Integrated power supply for direct connection to 85–264VAC or 88–300VDC
Optional wide-range DC supply: 19–72VDC
Optional internal redundant power supply
Full ISA 18.1 alarm sequences built-in, programmable via front panel USB connection
Flush panel units rated IP40, with optional IP54 kit
No links required for relay configuration
About Eaton MTL Instruments
Eaton MTL Instruments, a division of Eaton Corporation (USA), is a global leader in surge protection solutions for signal, data and power applications. With over 50 years of experience, MTL products are engineered to perform reliably in harsh and hazardous environments.
Viet Thang Loi Technology Company Limited is the authorized distributor of Eaton MTL Instruments (MTL) and Eaton Crouse-Hinds (CEAG) in Vietnam. Please contact us for more details.
More detail
The MTL P825 system allows deep customization of hardware and software. Please refer to the selection table below:
Feature | Technical Options | Detailed Description |
|---|---|---|
System Architecture | Remote or Integral units | Allows expansion of the number of windows based on actual requirements. |
Window Sizes | Small / Medium / Large | High-intensity LEDs with multiple indication colors. |
Communication | Modbus RTU / TCP-IP | Standard RS485 port, supports remote monitoring via Ethernet. |
Power Supply | AC or DC Wide Range | Wide range: 24VDC, 48VDC, or 85-264VAC. |
Programming | Configuration Software | Configure alarm sequences via USB/RS485 connection. |
Why Choose MTL P825 via Viet Thang Loi?
Official representative of Eaton MTL in Vietnam.
Full support for software configuration and custom alarm sequence programming.
Superior durability, stable operation in high electromagnetic interference environments.
