Overview

Known for its quality and reliability, the MTL7700 range of intrinsically safe passive network devices uses Zener diodes, resistors and fuses to safely divert excess electrical energy to ground, preventing sparking or overheating of equipment in hazardous areas.

This helps to ensure a safe working environment and protects people and assets from explosion risks.

Design and installation

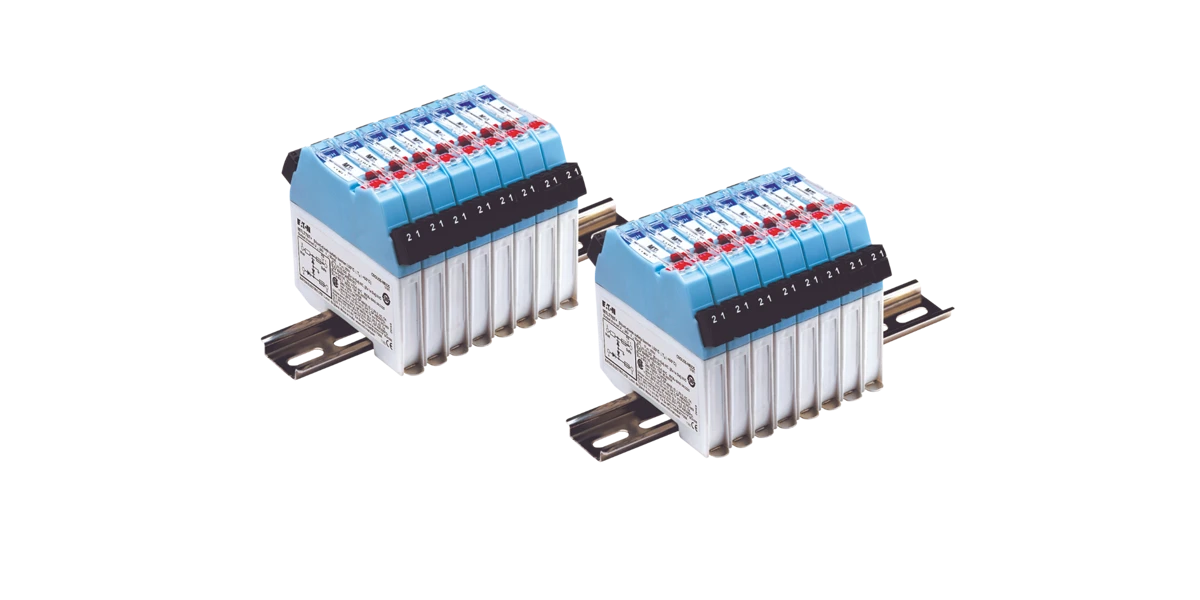

As a DIN-rail mounted barrier, the MTL7700 provides quick and easy installation without the need for special hardware. Removable terminals allow easy installation, maintenance and loop disconnection by simply unplugging the terminals from the side of the module.

Angled wire entry assists wiring within limited space enclosures.

Reliable IS earthing

MTL7700 barriers clamp securely onto standard T-section DIN rail, simultaneously providing a reliable intrinsically safe earth connection.

Field power capability

For applications requiring field power for switch inputs or 2-wire transmitters, the MTL7700 range offers a bussed power feed facility. When used with the MTL7798 power feed module, users obtain a fully protected, electronically fused supply to multiple barriers without additional wiring.

Key benefits

• Prevents sparking or overheating

• Reliable operation in extreme temperatures (-20°C to +60°C)

• Removable terminals for easy installation and maintenance

Certifications and approvals

• ATEX and IECEx approved

• Zone 0 Group IIC and IIIC outputs

• Zone 2 mounting

• T4 temperature classification

• Certified for -20°C to +60°C or +65°C

• FM, UL and CSA approved

• CE marked for compliance with LVD, EMC, ATEX and RoHS Directives

Other approvals

• Marine (Lloyd’s Register)

• Korea (KOSHA)

• India (PESO)

• Brazil (UL InMetro)

• China (NEPSI & CCC)

• Japan (TIIS)

Approvals held and approval details vary between models. Please refer to individual certificates for specific information.

Design features

• Removable terminals

• Bussed power feed to other modules

• Relay and solid-state switch modules

• Dual-channel variants – 6.3 mm per channel

• Proximity detector inputs

• Electronic fusing

• Direct replacement for MTL700 range barriers

• Compatible terminal numbering and safety descriptions

About Eaton MTL Instruments

Eaton MTL Instruments, a division of Eaton Corporation (USA), is a global leader in surge protection solutions for signal, data and power applications. With over 50 years of experience, MTL products are engineered to perform reliably in harsh and hazardous environments.

Viet Thang Loi Technology Company Limited is the authorized distributor of Eaton MTL Instruments (MTL) and Eaton Crouse-Hinds (CEAG) in Vietnam. Please contact us for more details.
