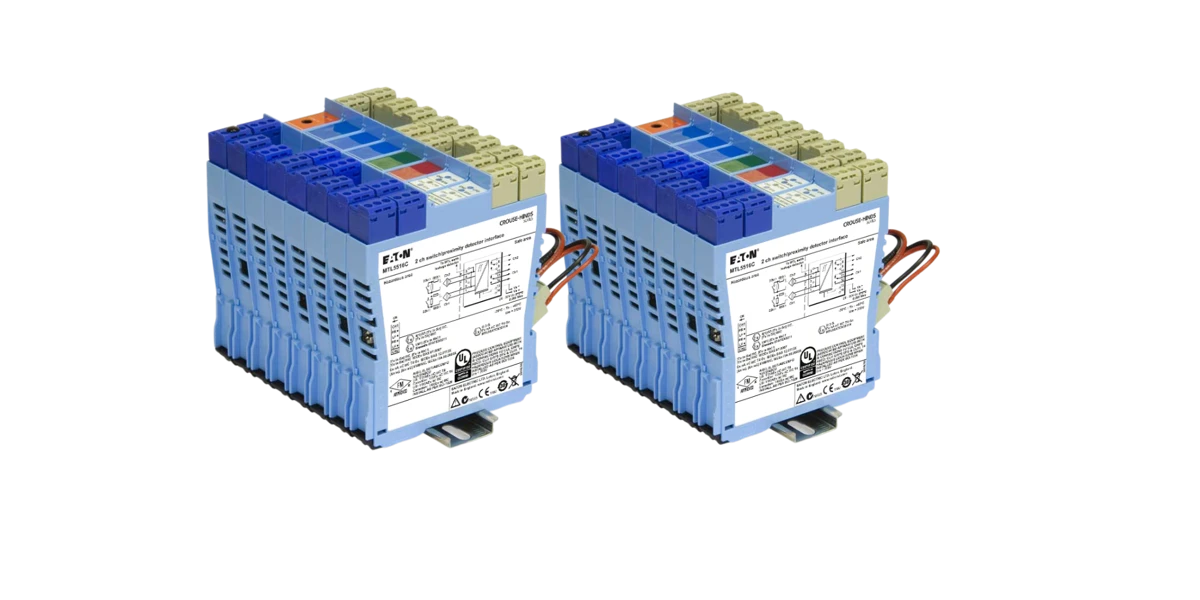

MTL5500 Din-Rail Mounted Intrinsically Safe Isolator
MTL5500 Din-Rail Mounted Intrinsically Safe Isolator
Overview
The MTL5500 range of intrinsically safe isolators is designed to meet the needs of the IS interface market for application-focused projects, from single instrument loops to fully equipped cabinets.
These devices protect electrical signals in potentially flammable or hazardous areas, helping to ensure a safe working environment and protecting people and assets from explosion risks.
Design and installation
The MTL5500 electrical isolator range features a slim, compact housing suitable for a wide range of space requirements. Single-channel and multi-channel module options allow users to select the required functionality without sacrificing cabinet space.
All signal wiring is connected via removable connectors, enabling fast installation and simple maintenance.
Key benefits
Prevents ignition of explosive atmospheres
Permits live maintenance
Easily integrates with major control systems
Certifications and approvals
ATEX and IECEx approved
Zone 0 Group I, IIC and IIIC outputs
Zone 2 mounting
T4 temperature classification
Certified for -20°C to +60°C
FM and FMc approved (US and Canada)
Design features
Compact modular design with DIN-rail mounting
High module and channel density
Single and multi-channel I/O modules
3-port isolation with low power dissipation
Quick install and release mechanism
Broken line monitoring
Compatible with preceding MTL isolator ranges
Selected models suitable for functional safety applications
About Eaton MTL Instruments
Eaton MTL Instruments, a division of Eaton Corporation (USA), is a global leader in surge protection solutions for signal, data and power applications. With over 50 years of experience, MTL products are engineered to perform reliably in harsh and hazardous environments.
Viet Thang Loi Technology Company Limited is the authorized distributor of Eaton MTL Instruments (MTL) and Eaton Crouse-Hinds (CEAG) in Vietnam. Please contact us for more details.
More detail
Product Code | Type | Specification | Functional Safety |
|---|---|---|---|
MTL5501-SR | Digital Input | 1ch DI failsafe solid-state output + LFD alarm | FSM Approved |
MTL5510 | Digital Input | 4ch DI solid-state ouput | - |
MTL5510B | Digital Input | 4ch DI multifunction solid-state output | - |
MTL5511 | Digital Input | 1ch DI relay output | FSM Approved |
MTL5513 | Digital Input | 2ch DI solid-state output | - |
MTL5514 | Digital Input | 1ch DI relay output + LFD alarm | FSM Approved |
MTL5514D | Digital Input | 1ch switch / prox input, dual output relay | FSM Approved |
MTL5516C | Digital Input | 2ch DI with changeover relay output | FSM Approved |
MTL5517 | Digital Input | 2ch DI relay output + LFD alarm | FSM Approved |
MTL5521 | Digital Output | Loop powered solenoid driver, IIC | FSM Approved |
MTL5521-T | Digital Output | Loop powered solenoid driver, IIC | - |
MTL5522 | Digital Output | Loop powered solenoid driver, IIB | FSM Approved |
MTL5523 | Digital Output | Solenoid driver with LFD | FSM Approved |
MTL5524 | Digital Output | Switch operated solenoid driver | FSM Approved |
MTL5525 | Digital Output | Loop powered solenoid driver low power | FSM Approved |
MTL5541 | Analogue Input | 1ch 2/3 wire Transmitter repeater | FSM Approved |
MTL5541A | Analogue Input | 1ch Transmitter repeater, passive input | FSM Approved |
MTL5541AS | Analogue Input | 1ch Transmitter repeater, passive input, current sink | FSM Approved |
MTL5541S | Analogue Input | 1ch 2/3 wire Transmitter repeater, current sink | FSM Approved |
MTL5544 | Analogue Input | 2ch 2/3 wire Transmitter repeater | FSM Approved |
MTL5544AS | Analogue Input | 2ch Transmitter repeater, passive input, current sink | - |
MTL5544D | Analogue Input | 1ch 2/3 wire Transmitter repeater, dual output | FSM Approved |
MTL5546 | Analogue Output | 1ch 4-20mA smart isolating driver + LFD | FSM Approved |
MTL5549 | Analogue Output | 2ch 4-20mA smart isolating driver + LFD | FSM Approved |
MTL5575 | Temperature Input | 1ch Temperature converter, RTD / THC with alarm | - |
MTL5582B | Temperature Input | 1ch resistance isolator to repeat RTD signals | FSM Approved |
MTL5531 | Pulse and Vibration | 1ch vibration probe interface | FSM Approved |
MTL5561 | Fire and Smoke | 2ch loop-powered, for fire and smoke detectors | FSM Approved |
PSG60E24RM | General | 24V dc power supply (replaces MTL5991) | - |
