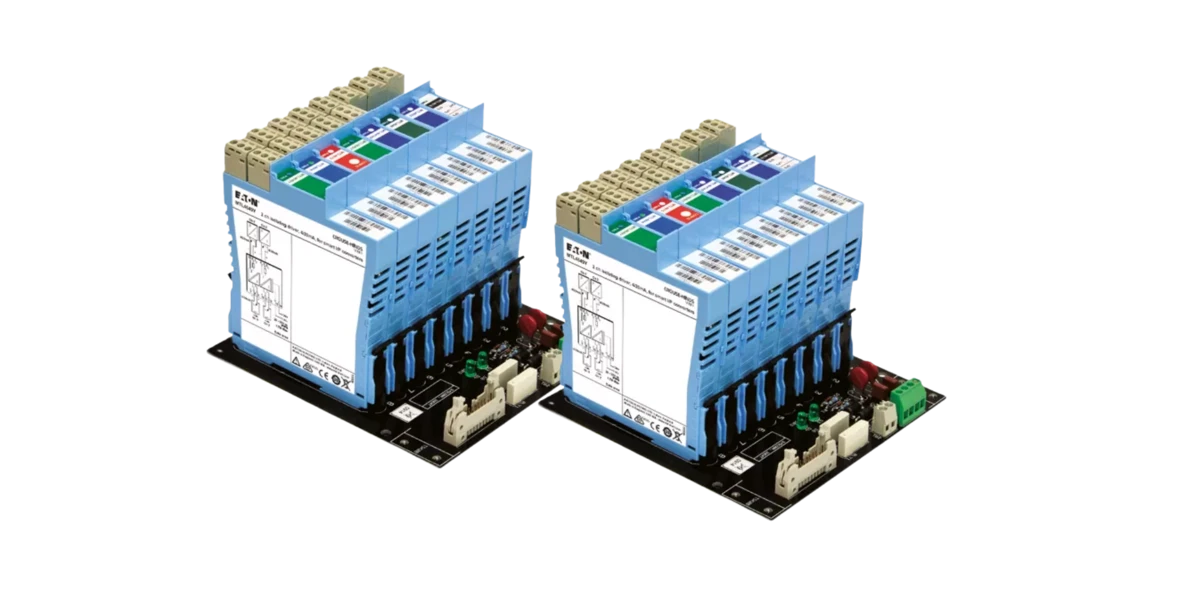

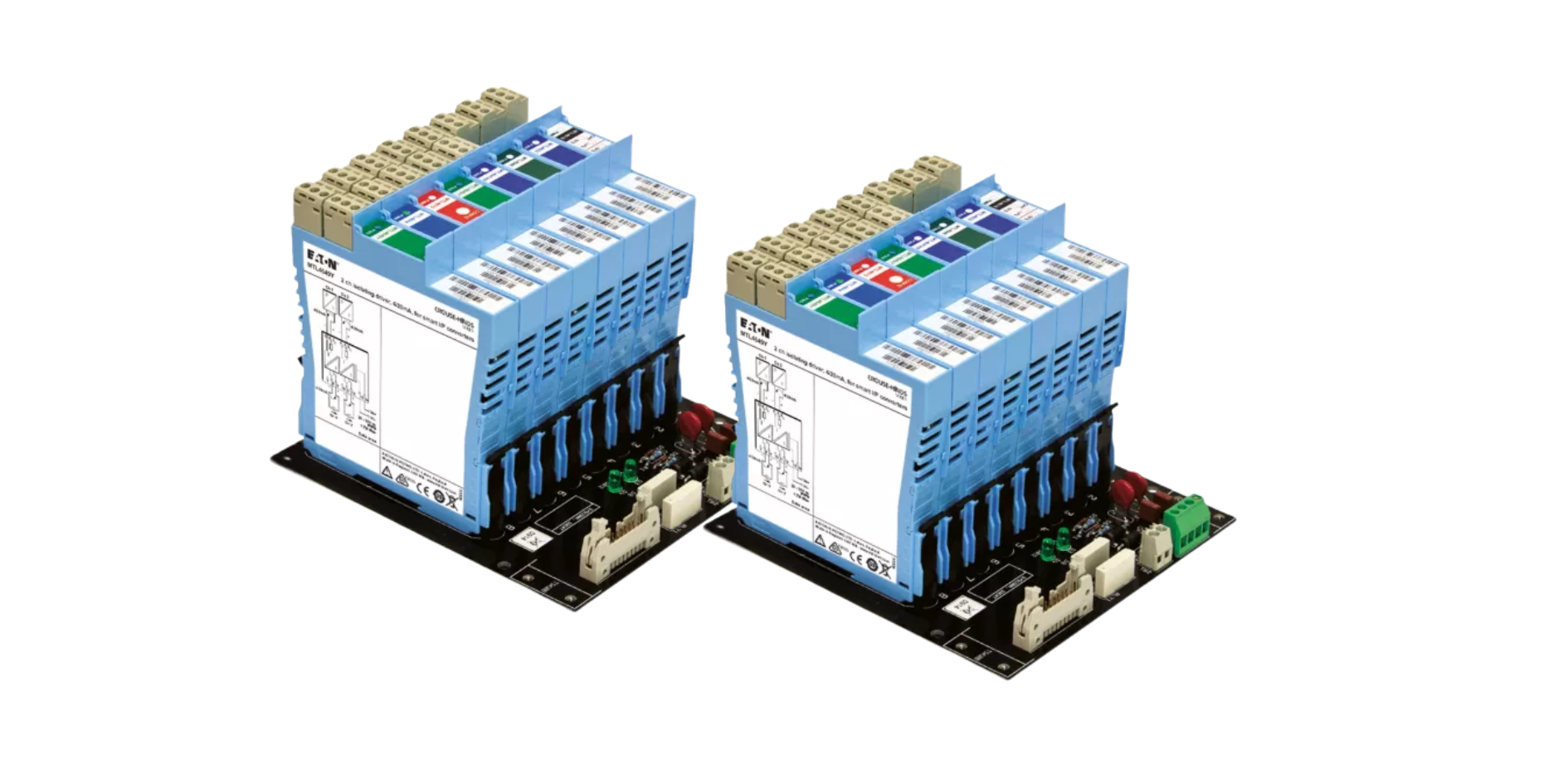

The MTL4500 range of backplane mounting intrinsic safety isolators offers an innovative solution for protecting electrical signals in potentially flammable or other hazardous areas. It ensures a safe work environment and protects personnel and assets from explosion risks.

Key Benefits

• Highest Packing Density: More I/O channels in each module provide the highest density on the market, saving cabinet space.

• Advanced Technology: Utilises innovative planar transformer technology and extensive automation in construction for maximum reliability.

• Project Focussed: Designed for Distributed Control Systems (DCS), Emergency Shutdown Systems (ESD), and Fire and Gas monitoring (F&G).

• Low Power Dissipation: 3-port isolation as standard with improved performance from low-power circuit designs.

Certifications and Compliances

• Explosion Protection: ATEX & IECEx approved; FM & FMc approved (US and Canada).

• Mounting: Zone 2 or Class I, Division 2 mounting.

• Hazardous Area Outputs: Zone 0 Group I, IIC & IIIC; Class I, II & III Div 1.

• Operating Temperature: Certified for -20°C to +60°C.

• Marine & Regional Approvals: Lloyds Register, KTL (Korea), NEPSI (China), PESO (India).

Industry Applications

The MTL4500 series is the preferred choice for safety-critical industries:

• Oil & Gas and Petrochemical refineries.

• Thermal Power and Renewable Energy plants.

• Chemical, Pharmaceutical, and Pulp & Paper industries.

Product Selection Guide

Choose the right MTL4500 module based on your specific signal requirements:
