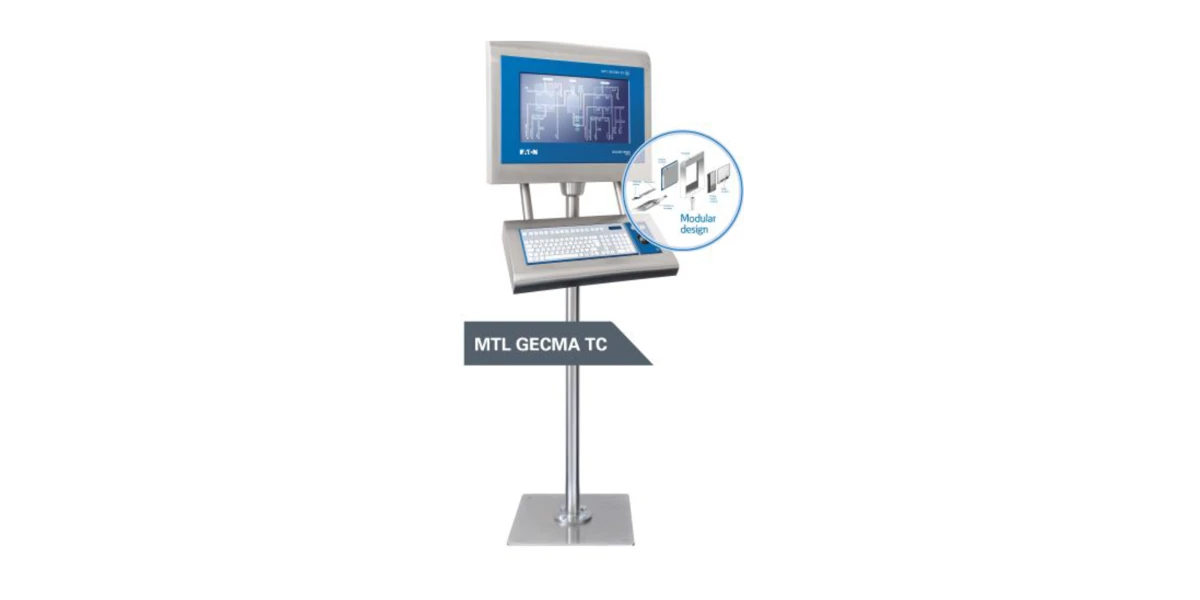

MTL GECMA Workstation Thin Client.
MTL GECMA Workstation Thin Client
MTL GECMA Workstation Thin Client is specifically designed for virtualisation applications in Ex Zones 1/2/21/22 hazardous areas. It provides a powerful and reliable ‘client’ solution for integration into a Distributed Control System.MTL GECMA Workstation PC provides a powerful stand-alone solution for applications such as packing machines and is specified for use in Ex Zone 1/2/21/22 hazardous areas.
MTL GECMA Workstation Thin Client
Safety
Individually certified modules ensuring maximum safety in hazardous areas
Reliability
Fibre optic or copper data transmission for reliable communication
Ease of Use
Single-line data transmission simplifying installation and maintenance
Certifications and Compliances
ATEX and IECEx approved
Suitable for Zone 1 installation
Gas group IIC
Temperature class T4
Certified ambient temperature range: -30°C to +60°C (configuration dependent)
CE marked in compliance with ATEX, EMC, LVD and RoHS directives
Design Features
Quad-core 2 GHz CPU providing high-performance processing for application software
8 GB RAM enabling enhanced system performance and multitasking
Ex i and Ex e interfaces allowing easy integration of locally connected field devices
Windows 10 IoT operating system with remote-access software for seamless integration into existing control networks
Dual Ethernet ports providing network redundancy and increased system availability
Modular and innovative platform concept reducing installation, commissioning, and lifecycle costs
Individually certified modules enabling fast and safe on-site maintenance
19", 22" Full HD and 24" display options with LED backlight technology for optimal image quality and visibility
Lightweight, slimline design optimizing space utilization and offering flexible installation options
Fibre optic or copper communication supporting cost-effective, high-reliability, and high-data-volume transmission
About Eaton MTL Instruments
Eaton MTL Instruments, a division of Eaton Corporation (USA), is a global leader in surge protection solutions for signal, data and power applications. With over 50 years of experience, MTL products are engineered to perform reliably in harsh and hazardous environments.
Viet Thang Loi Technology Company Limited is the authorized distributor of Eaton MTL Instruments (MTL) and Eaton Crouse-Hinds (CEAG) in Vietnam. Please contact us for more details.
>
More detail
Specification | 19" Thin Client | 22" Thin Client | 24" Thin Client |
|---|---|---|---|
ELECTRICAL | |||
Screen size | 19 inch (48 cm) diagonal | 21.5 inch (54 cm) diagonal | 24 inch (61 cm) diagonal |
Display | 1280 x 1024, 5:4, 16.7 million colours | 1920 x 1080, 16:9, 16.7 million colours | 1920 x 1200, 16:10, 16.7 million colours |
Brightness | 250 cd/m² | 250 cd/m² | 250 cd/m² |
Contrast ratio | 1000:1 (typical) | 1000:1 (typical) | 1000:1 (typical) |
Viewing angle | 170/160° @ CR ≥ 10 | 170/160° @ CR ≥ 10 | 170/160° @ CR ≥ 10 |
Touchscreen (optional) | Resistive 5-wire glass | Resistive 5-wire glass | Resistive 5-wire glass |
CPU | Quad Core Intel Celeron J1900 | Quad Core Intel Celeron J1900 | Quad Core Intel Celeron J1900 |
Frequency | 2 GHz (2.42 GHz burst) | 2 GHz (2.42 GHz burst) | 2 GHz (2.42 GHz burst) |
Memory | 4GB DDR3L (max. 8GB) | 4GB DDR3L (max. 8GB) | 4GB DDR3L (max. 8GB) |
Video | Intel Gen7 graphic engine | Intel Gen7 graphic engine | Intel Gen7 graphic engine |
TERMINAL UNIT | |||
Power supply | AC 100–240V, 50/60Hz / DC 20–30V | ||
Input power | 80W typ. / 88W max | 80W typ. / 88W max | 80W typ. / 88W max |
Ethernet | 2x Ex e 1000Mbps Copper OR 2x Fibre Ethernet (LC, SM/MM) | ||
Watchdog timer | System reset, programmable 1–255 min/sec | ||
Storage | 64GB SSD (larger on request) | ||
Serial | 1x Ex e RS232, 1x Ex i RS232 | ||
USB | 2x Ex e USB 2.0, 4x Ex i USB 2.0 | ||
Pointing devices | 2x Ex i PS/2 | ||
Operating system | Windows 10 IoT | ||
Client application | Remote Desktop (pre-installed), others on request | ||
MECHANICAL | |||
Housing material | Stainless steel 304 (1.4301) / 316L (1.4404, optional), electropolished optional | ||
Weight | 65 kg | 69 kg | 75 kg |
Dimensions (W x H x D) | 509 x 429 x 50 mm | 610 x 400 x 50 mm | 675 x 461 x 50 mm |
ENVIRONMENTAL | |||
Temperature | Operating: -20°C to +50°C | ||
Ingress protection | Front IP66 / NEMA 4 | ||
CERTIFICATION | |||
Authority | IECEx: SIR 16.0062X / ATEX: 16ATEX5180X | ||
Approved for | Ex eb mb[ib] op is IIC T4 Gb | ||
