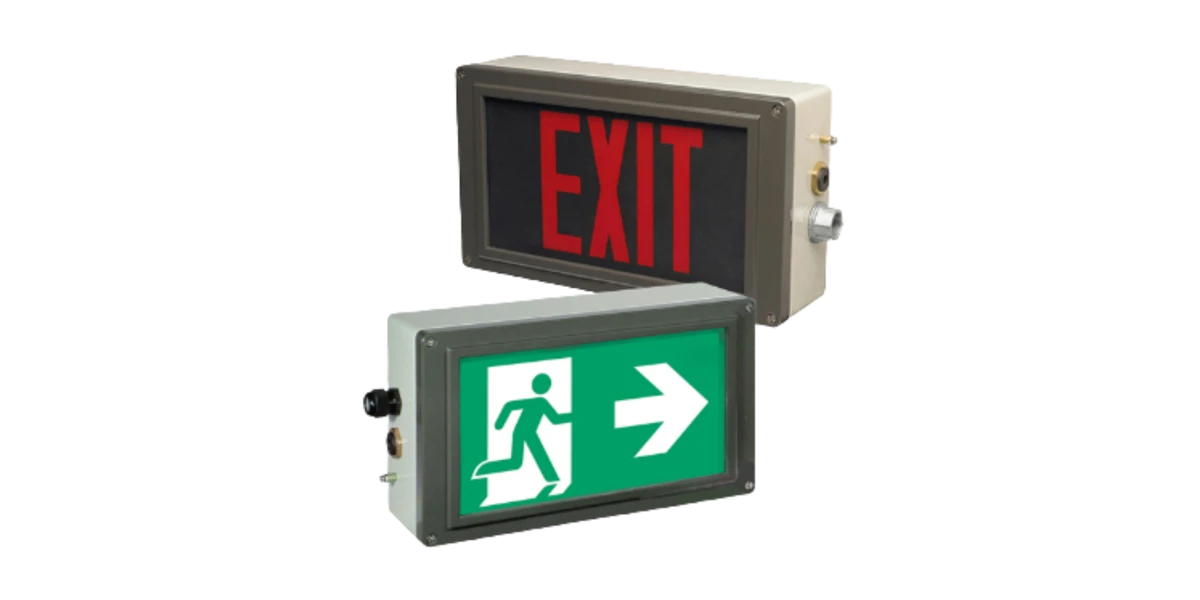

Eaton Ex-Lite Division 2 and Zone 1 Hazardous Area LED Exit Signs
Eaton Ex-Lite Division 2 and Zone 1 Hazardous Area LED Exit Signs
Ex-Lite LED exit signs from Eaton’s Crouse-Hinds Division are designed for hazardous locations and are ideally suited for marking escape routes and emergency exits in potentially explosive atmospheres.
The Ex-Lite Z is available as an AC-only version, while the Ex-Lite ZE is equipped with a self-contained battery system. As an emergency lighting luminaire, the Ex-Lite ZE features a nickel-cadmium battery with automatic testing and monitoring functions.
Certifications and compliances
Class I, Division 2, Groups A, B, C, D
Class I, Zone 1, AEx em ib IIC (NEC)
Class I, Zone 1, Ex em ib IIC (CEC)
Class II, Division 2, Groups F, G (NEC)
Class II, Division 2, Groups E, F, G (CEC)
Degree of protection: IP66
UL844
UL924 CAN/CSA C22.2 No.141-15
UL60079 / CSA22.2 E60079
UL1203 / CSA22.2 E6124-1-1-02
Design features
LED technology
Long life greater than 50,000 hours for years of maintenance-free operation
Energy-efficient design for lower operating costs
Low temperature operation with no loss of illumination
Rugged and durable light source for harsh industrial environments
Exit sign system
Conduit or cable entry
Suitable for moist, humid, rainy and wet environments
Universal input voltage 110–277 VAC and 110–250 VDC reduces inventory
Ex-Lite ZE with self-monitoring, self-diagnostic and test capability
Premium heavy duty nickel cadmium battery
24-hour charge and recharge time for rapid recovery after power outages
“EXIT” legend with left, right or left-and-right directional wings, field-modifiable
Emergency lighting duration of three hours
Luminaire housing constructed of corrosion-resistant, lightweight aluminum alloy
Red, high-efficiency LEDs provide clear and reliable illumination
Standard materials
Housing – lightweight aluminum alloy
Ordering information
Ordering information
Catalog number | Product description |
12191001005 | Eaton Crouse-Hinds series Ex-Lite Z exit sign, 3/4" entries, 50/60 Hz, LED, red letter color, horizontal lettering, aluminum alloy housing, wall mount, 120–277 Vac, 110–250 Vdc |
12191001021 | Eaton Crouse-Hinds series Ex-Lite ZR exit sign, 3/4" entry, arrow right, LED, aluminum alloy, wall mount, running man pictogram with arrow (3h), 120–277 Vac, 110–250 Vdc |
12191001022 | Eaton Crouse-Hinds series Ex-Lite ZR exit sign, 3/4" entry, arrow left, LED, aluminum alloy, wall mount, running man pictogram with arrow (9h), 120–277 Vac, 110–250 Vdc |
12191001023 | Eaton Crouse-Hinds series Ex-Lite ZR exit sign, 3/4" entry, arrow downwards, LED, aluminum alloy, wall mount, running man pictogram with arrow (6h), 120–277 Vac, 110–250 Vdc |
12191011003 | Eaton Crouse-Hinds series Ex-Lite exit sign, arrow downwards, gray, LED, white letters, aluminum alloy, wall mount, pictogram cover (arrow 6h), M25 cable gland, DIN 4844, 110–277 Vac, 110–250 Vdc |
12191011004 | Eaton Crouse-Hinds series Ex-Lite exit sign, LED, aluminum alloy, wall mount, clear cover without pictogram, M25 cable gland, ISO 7010, 110–277 Vac, 110–250 Vdc |
12191011021 | Eaton Crouse-Hinds series Ex-Lite exit sign, arrow right, gray, LED, white letters, aluminum alloy, wall mount, pictogram cover (arrow 3h), M25 cable gland, ISO 7010, 110–277 Vac, 110–250 Vdc |
12191011022 | Eaton Crouse-Hinds series Ex-Lite exit sign, arrow left, gray, LED, white letters, aluminum alloy, wall mount, pictogram cover (arrow 9h), M25 cable gland, ISO 7010, 110–277 Vac, 110–250 Vdc |
12191011023 | Eaton Crouse-Hinds series Ex-Lite exit sign, arrow downwards, gray, LED, white letters, aluminum alloy, wall mount, pictogram cover (arrow 6h), M25 cable gland, ISO 7010, 110–277 Vac, 110–250 Vdc |
12191021001 | Eaton Crouse-Hinds series Ex-Lite V-CG-S exit sign, arrow right, gray, LED, aluminum alloy, wall mount, pictogram cover (arrow 3h), monitoring module, DIN 4844, 220–254 Vac, 195–250 Vdc |
12191021002 | Eaton Crouse-Hinds series Ex-Lite V-CG-S exit sign, arrow left, gray, LED, aluminum alloy, wall mount, pictogram cover (arrow 9h), monitoring module, DIN 4844, 220–254 Vac, 195–250 Vdc |
12191021003 | Eaton Crouse-Hinds series Ex-Lite V-CG-S exit sign, arrow downwards, gray, LED, aluminum alloy, wall mount, pictogram cover (arrow 6h), monitoring module, DIN 4844, 220–254 Vac, 195–250 Vdc |
12191031001 | Eaton Crouse-Hinds series Ex-Lite N exit sign, arrow right, gray, LED, aluminum alloy, wall mount, pictogram cover (arrow 3h), battery backup, DIN 4844, 110–277 Vac, 110–250 Vdc |
12191031104 | Eaton Crouse-Hinds series Ex-Lite N exit sign, LED, aluminum alloy, wall mount, clear cover without pictogram, battery backup, ISO 7010, 110–277 Vac, 110–250 Vdc |
12191130005 | Eaton Crouse-Hinds series Ex-Lite ZE exit sign, 3/4" entries, LED, red letters, aluminum alloy, wall mount, nickel cadmium battery, self-test and self-diagnostic, 120–277 Vac, 110–250 Vdc |
12191130021 | Eaton Crouse-Hinds series Ex-Lite ZER exit sign, 3/4" entry, arrow right, LED, aluminum alloy, wall mount, nickel cadmium battery, self-test and self-diagnostic, running man pictogram (3h), 120–277 Vac, 110–250 Vdc |
12191130022 | Eaton Crouse-Hinds series Ex-Lite ZER exit sign, 3/4" entry, arrow left, LED, aluminum alloy, wall mount, nickel cadmium battery, self-test and self-diagnostic, running man pictogram (9h), 120–277 Vac, 110–250 Vdc |
12191130023 | Eaton Crouse-Hinds series Ex-Lite ZER exit sign, 3/4" entry, arrow downwards, LED, aluminum alloy, wall mount, nickel cadmium battery, self-test and self-diagnostic, running man pictogram (6h), 120–277 Vac, 110–250 Vdc |
