Live fixture ID
Our intuitive app-based dashboard enables quick and easy identification of individual lights installed in the field. Simply select "live id" for a specific fixture and it will cycle on and off three times.
Solution Provider For Industries
Eaton Champ VMVL LED Intelligent Lighting Control and Insights for Hazardous Areas.
Product Detail

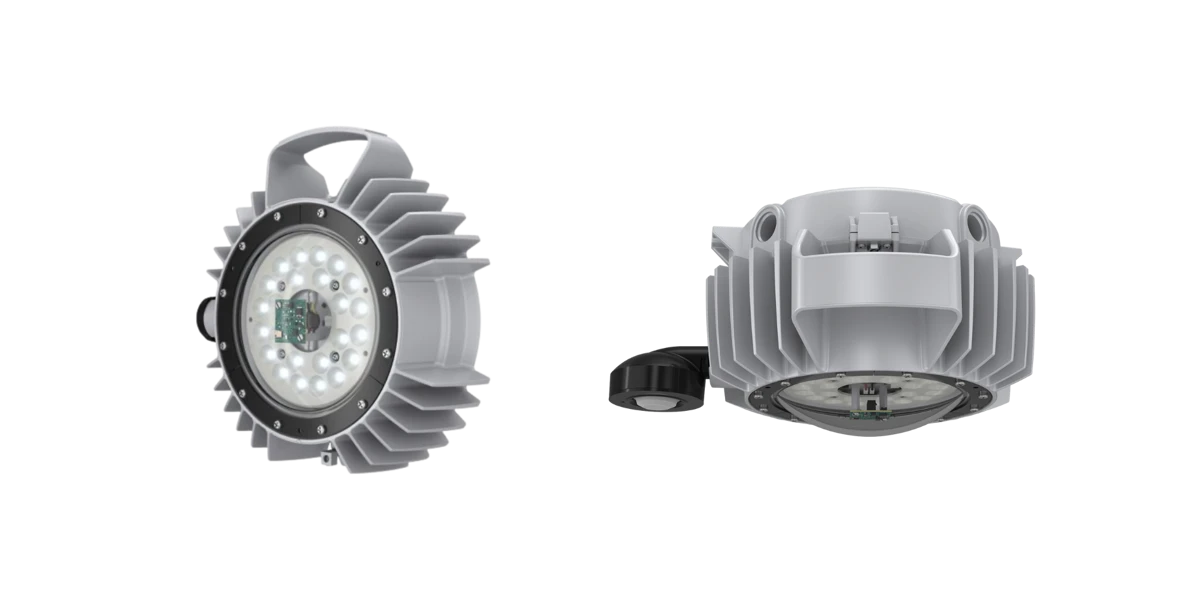

Eaton Champ VMVL LED Intelligent Lighting Control and Insights for Hazardous Areas
Champ VMVL solution with integrated sensors and smart controls for hazardous areas. Enables remote monitoring, data insights, and up to 90% energy savings.
Eaton Champ VMVL LED Intelligent Lighting Control and Insights for Hazardous Areas
Crouse-Hinds series Champ™ light fixtures are renowned for their reliability and safety in harsh and hazardous lighting applications. Now enhanced with intelligent control and insight capabilities, Champ luminaires deliver increased operational value and a lower total cost of ownership.
By combining advanced LED lighting design with integrated communication and sensing technologies, along with an intuitive app-based interface, Champ Intelligent lighting provides full control at your fingertips—enhancing safety, maximizing energy efficiency and reducing maintenance costs.
Available in lumen packages ranging from 3,000 to 7,000 lumens, Champ VMVL Intelligent lighting is engineered to deliver maintenance-free illumination, long service life and high performance in Class I, Division 2 and Class II, Division 1 hazardous locations.
Champ Intelligent is Brightlayer Read
Champ Intelligent lighting is Brightlayer™ ready, leveraging Eaton’s portfolio of power and energy software and services to enhance lighting assets with advanced control, monitoring and actionable insights.
Through Brightlayer™, Eaton combines deep electrical expertise with connected hardware, intelligent software and expert services to deliver integrated solutions that help reduce risk and improve safety, efficiency, resiliency and sustainability in hazardous and industrial environments.
By enabling Brightlayer connectivity, Champ Intelligent luminaires provide more than safe and reliable illumination—they deliver real operational value by supporting smarter energy management and optimized total cost of ownership.
The benefits of Champ Intelligent Lighting:
With an active Brightlayer Lighting software subscription, the Champ VMVL LED intelligent light fixture offers wireless control and insight capabilities, delivering more operational value and better total cost of ownership.
Maintain uptime and reduce maintenance costs
Running lights longer than necessary reduces fixture lifespan and increases material and labor costs. Intelligent control helps eliminate overuse and extend system life.
Maximize energy savings and sustainability
Intelligent lighting control allows you to fine-tune output based on usage, helping reduce energy consumption by up to 50% while supporting sustainability goals.
Improve safety and alarming
Continuous monitoring generates real-time alerts for abnormal conditions, enabling proactive action to maintain a safe and reliable operating environment.

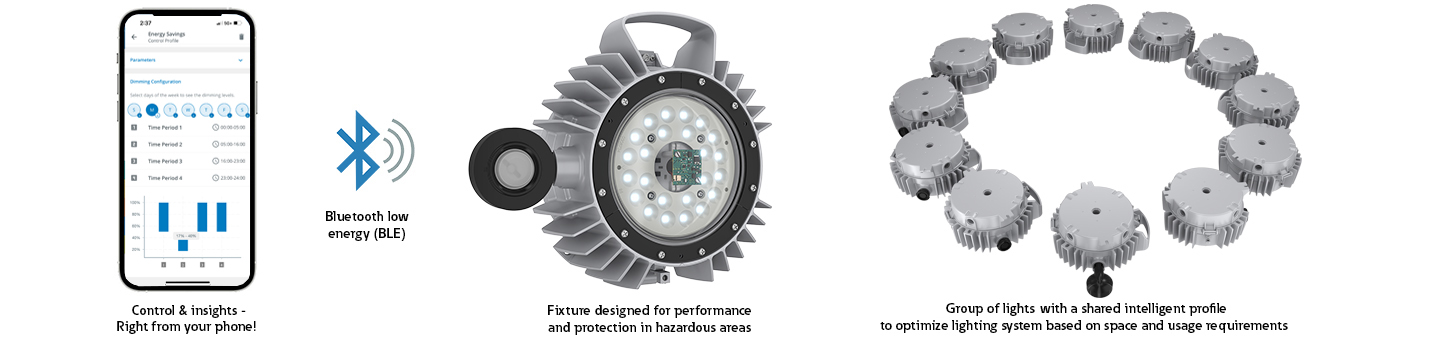

Designed for simplicity

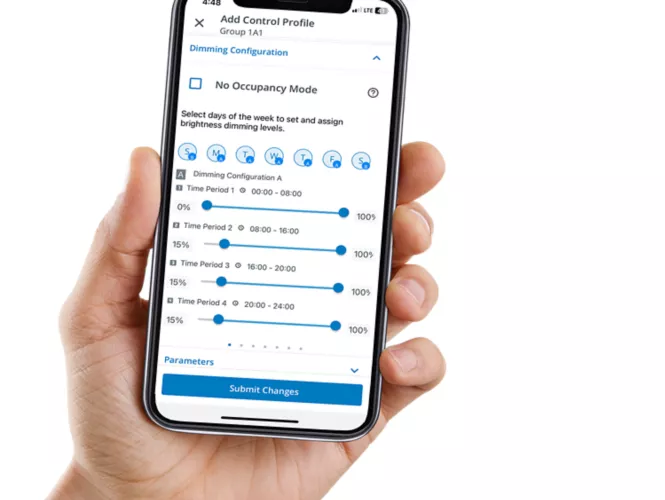

Designed for simplicity, intuitive commissioning and control through the Brightlayer™ Lighting app enables effortless management of your lighting system. Unlike many “connected” lighting solutions that rely on complex hardware and software, Brightlayer Lighting offers a robust, easy-to-use mobile interface that connects directly to each Crouse-Hinds series luminaire via Bluetooth® Low Energy (BLE) technology.
All control is handled directly from your mobile device — with no gateways or servers required.
Simplified luminaire control designed for hazardous area applications
App-based configuration for fast and effortless customization
Connected infrastructure that supports future scalability and expansion
Intelligent lighting control reduces costs by optimizing your system and eliminating over-usage of lights
With Champ Intelligent LED light fixtures and Brightlayer Lighting, combinations of the control functions below can be utilized across your facility to optimize light levels by site and minimize your energy and maintenance costs.
* This lighting functionality requires a subscription to our Brightlayer Lighting service plan. See below for more details.
Device grouping *
An added benefit that maximizes control in a defined area. By grouping light fixtures, the same control settings can be applied to them all, increasing efficiency and response time.
ON/OFF and dimming
Turn lights on and off wirelessly from the dashboard. Reduce energy consumption by setting dimming levels. Used in conjunction with other features, such as scheduling and occupancy sensing, to further improve energy savings.
Intelligent scheduling *
Allows for improving energy efficiency during non-operational hours. Easy app-based configuration lets a user set up schedules for lights to be on and off at pre-defined times, removing the challenges of manual management.

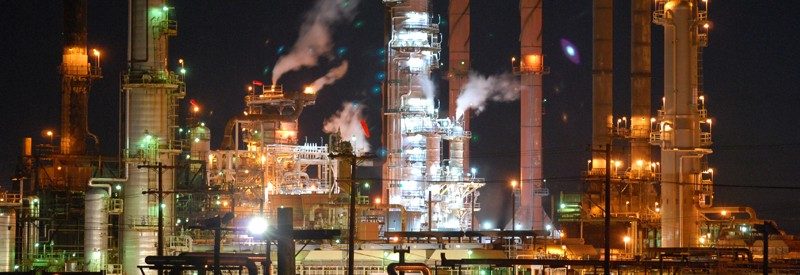

Occupancy sensing *
Ideal for areas that see infrequent traffic, such as storage areas of warehouses. Sensor controls can automatically illuminate the area once presence is sensed and also turn lights back off when presence is no longer sensed.
Daylight harvesting *
Allows for use of the daylight and adjusts the light level of the luminaire to maintain desired light levels. It is best suited for outdoor environments or indoor areas where daylight is present during operational hours of a facility.
OVERVIEW
Certifications and Compliances
Applicable Standards
NEC, CEC and IEC
Hazardous Area Classifications
Class I, Division 2: Groups A, B, C, D
Class II: Groups E, F, G
Class III
Simultaneous Presence
Zone Classifications (IEC / ATEX)
Class I, Zone 2: AEx ec ia IIC; Class I, Zone 2 Ex ec ia IIC
Zone 21: AEx ia tb IIIC; Zone 21 Ex ia tb IIIC
Ex ia tb IIIC T*°C Db
II 3 G Ex ec ia IIC T* Gc
II 2 D Ex ia tb IIIC T*°C Db
International Certifications
IECEx UL 19.0039X
DEMKO 19 ATEX 2118X
DEMKO 19 ATEX 2119X
Environmental Ratings
Wet locations
Type 4X
IP66
UL Standards
UL 844
UL 913
UL 1598
UL 1598A
UL 50E
UL 60079-0
UL 60079-7
UL 60079-11
UL 60079-31
CSA Standards
CSA C22.2 No. 137
CSA C22.2 No. 94.2
CSA C22.2 No. 60079-0
CSA C22.2 No. 60079-7
CSA C22.2 No. 60079-11
CSA C22.2 No. 60079-31
IEC and EN Standards
IEC/EN 60079-0
IEC/EN 60079-7
IEC/EN 60079-11
IEC/EN 60079-31
Design features - Engineered for reliable performance in extreme environments
Design Features – Engineered for Reliable Performance in Extreme Environments
A trusted design for reliability in harsh and hazardous areas, combined with control and insight capabilities to optimize industrial lighting applications based on space and specific usage requirements.
Champ VMVL LED Intelligent Light Fixture – Refinery Installation
Operating ambient: -40°C to 65°C
Environmental rating: Type 4X, IP66
Corrosion resistance: Corrosion-resistant aluminum housing with Corro-free™ epoxy powder coating
Vibration resistance: Tested in accordance with Section 33 of UL 844
Impact resistance: Tested in accordance with Section 68 of UL 844
Surge protection: 6kV standard (10kV available upon request)
Mounting Module & Driver Housing
A. Retro-fit Friendly Universal Top Hats
Seven mounting module styles help ensure proper fixture placement for optimal facility lighting
All Crouse-Hinds series Champ LED luminaires utilize the same mounting modules as legacy products, simplifying installation and significantly reducing retrofit costs
B. Smart Driver & Controller
Fully serviceable drivers isolated from the primary heat source (LED engine) to maximize economic life
Controller manages dimming, scheduling and grouping functionality, as well as notifications and alarming
C. Lever Lock Connectors and Terminal Blocks
Plug-and-play wiring simplifies and speeds up installation
LED Engine and Heat Sink
A. Heat Fins
Ensures proper airflow and facilitates dust shedding for effective heat dissipation and thermal management of the LED engine
B. Integral Carrying Handle
Simplifies transportation and installation at the job site
C. Custom Optics and Colors
Type I, III and V optics direct light where needed, helping eliminate gaps and dark spots
3000K (warm) and 5000K (cool) color options available; green and amber LEDs offered for wildlife conservation applications
D. Integrated Antenna
Integrated within the optics board inside the lens, maintaining hazardous area ratings
Effortless connection to Eaton’s Brightlayer Lighting control interface – no complex hardware required
Bluetooth Low Energy (BLE) enables decentralized control without complex or expensive IT network infrastructure
E. Custom Lenses
Glass or polycarbonate lenses available with clear or diffused finishes to meet customer requirements
Intelligent Multi-Sensor
A. Intelligent Multi-Sensor
Replaceable sensor can be factory-installed or field-installed at a later date
Sensor is integral to the luminaire – no field wiring required
PIR occupancy sensor with LED indicator
Automatically illuminates the area when presence is detected
Turns lights off after a preset time once no presence is detected
Photo sensor for daylight harvesting and lux reporting
Measures available daylight and adjusts luminaire output to maintain desired light levels
/ 6
Ordering Information
Model | Specification |
|---|---|
VMVL-3-A2-R1-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 140 lm/W, Die cast alum, Pendant mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-A2-R3-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 137 lm/W, Die cast alum, Pendant mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-A2-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 156 lm/W, Die cast alum, Pendant mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-A2-UNV1-SS12-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lm, 156 lm/W, Die cast alum, Pendant mt, Type V optics, Sensor, 3/4", 100-277Vac, 127-250Vdc, 21W |
VMVL-3-C2-R1A-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 140 lm/W, Die cast alum, Ceiling mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-C2-R3A1-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 137 lm/W, Die cast alum, Ceiling mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-C2-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 156 lm/W, Die cast alum, Ceiling mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-C2-UNV1-SS12-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lm, 156 lm/W, Die cast alum, Ceiling mt, Type V optics, Sensor, 3/4", 100-277Vac, 127-250Vdc, 21W |
VMVL-3-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 156 lm/W, Die cast alum, No mtg module, Type V optics, 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-UNV1-SS12-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lm, 156 lm/W, Die cast alum, No mtg module, Type V optics, Sensor, 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-W-A2-R1-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 140 lm/W, Die cast alum, Pendant mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-W-A2-R3-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 137 lm/W, Die cast alum, Pendant mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-W-A2-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 156 lm/W, Die cast alum, Pendant mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-W-C2-R1A-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 140 lm/W, Die cast alum, Ceiling mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-W-C2-R3A1-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 137 lm/W, Die cast alum, Ceiling mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-W-C2-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 156 lm/W, Die cast alum, Ceiling mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-W-R1-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 140 lm/W, Die cast alum, No mounting module, Type I optics, 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-W-R3-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 137 lm/W, Die cast alum, No mtg module, Type III optics, 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-W-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lumens, 156 lm/W, Die cast alum, No mounting module, Type V optics, 100-277 Vac, 127-250 Vdc, 21W |
VMVL-3-W-UNV1-SS12-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lm, 156 lm/W, Die cast alum, No mtg module, Type V optics, Sensor, 100-277 Vac, 127-250 Vdc, 21W |
VMVL-5-A2-R1-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 133 lm/W, Die cast alum, Pendant mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-A2-R3-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 136 lm/W, Die cast alum, Pendant mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-A2-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 157 lm/W, Die cast alum, Pendant mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-A2-UNV1-SS12-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lm, 156 lm/W, Die cast alum, Pendant mt, Type V optics, Sensor, 3/4", 100-277Vac, 127-250Vdc, 35W |
VMVL-5-C2-R1A-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 133 lm/W, Die cast alum, Ceiling mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-C2-R3A1-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 136 lm/W, Die cast alum, Ceiling mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-C2-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 157 lm/W, Die cast alum, Ceiling mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-C2-UNV1-SS12-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lm, 156 lm/W, Die cast alum, Ceiling mt, Type V optics, Sensor, 3/4", 100-277Vac, 127-250Vdc, 35W |
VMVL-5-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 157 lm/W, Die cast alum, No mounting module, Type V optics, 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-UNV1-SS12-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lm, 156 lm/W, Die cast alum, No mtg module, Type V optics, Sensor, 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-W-A2-R1-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 133 lm/W, Die cast alum, Pendant mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-W-A2-R3-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 136 lm/W, Die cast alum, Pendant mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-W-A2-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 157 lm/W, Die cast alum, Pendant mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-W-C2-R1A-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 133 lm/W, Die cast alum, Ceiling mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-W-C2-R3A1-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 136 lm/W, Die cast alum, Ceiling mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-W-C2-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 157 lm/W, Die cast alum, Ceiling mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-W-R1-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 133 lm/W, Die cast alum, No mounting module, Type I optics, 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-W-R3-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 136 lm/W, Die cast alum, No mtg module, Type III optics, 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-W-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 157 lm/W, Die cast alum, No mounting module, Type V optics, 100-277 Vac, 127-250 Vdc, 35W |
VMVL-5-W-UNV1-SS12-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lm, 156 lm/W, Die cast alum, No mtg module, Type V optics, Sensor, 100-277 Vac, 127-250 Vdc, 35W |
VMVL-7-A2-R1-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 139 lm/W, Die cast alum, Pendant mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-A2-R3-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 136 lm/W, Die cast alum, Pendant mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-A2-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 153 lm/W, Die cast alum, Pendant mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-A2-UNV1-SS12-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lm, 156 lm/W, Die cast alum, Pendant mt, Type V optics, Sensor, 3/4", 100-277Vac, 127-250Vdc, 50W |
VMVL-7-C2-R1A-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 139 lm/W, Die cast alum, Ceiling mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-C2-R3A1-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 136 lm/W, Die cast alum, Ceiling mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-C2-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 153 lm/W, Die cast alum, Ceiling mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-C2-UNV1-SS12-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lm, 156 lm/W, Die cast alum, Ceiling mt, Type V optics, Sensor, 3/4", 100-277Vac, 127-250Vdc, 50W |
VMVL-7-D-R3-PC-UNV1-SS12-M3 | Deep warm white, Dimmable, No guard, Polycarbonate lens, 7000 lumens, 136 lm/W, Die cast aluminum, No mtg module, Type III optics, Sensor, 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-UNV1-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 153 lm/W, Die cast alum, No mounting module, Type V optics, 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-UNV1-SS12-M3 | Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lm, 156 lm/W, Die cast alum, No mtg module, Type V optics, Sensor, 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-W-A2-R1-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 139 lm/W, Die cast alum, Pendant mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-W-A2-R3-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 136 lm/W, Die cast alum, Pendant mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-W-A2-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 153 lm/W, Die cast alum, Pendant mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-W-C2-R1A-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 139 lm/W, Die cast alum, Ceiling mt, Type I optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-W-C2-R3A1-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 136 lm/W, Die cast alum, Ceiling mt, Type III optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-W-C2-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 153 lm/W, Die cast alum, Ceiling mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-W-R1-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 139 lm/W, Die cast alum, No mounting module, Type I optics, 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-W-R3-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 136 lm/W, Die cast alum, No mtg module, Type III optics, 100-277 Vac, 127-250 Vdc, 50W |
VMVL-7-W-UNV1-M3 | Warm white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lumens, 153 lm/W, Die cast alum, No mounting module, Type V optics, 100-277 Vac, 127-250 Vdc, 50W |
About Eaton Crouse-Hinds
Eaton is a global power management company and a leading supplier of explosion-proof and hazardous area solutions. Through its Crouse-Hinds / CEAG and MTL Instruments product lines, Eaton provides certified lighting, power distribution, control and intrinsic safety systems for Zone 0, 1, 2, 21 and 22 hazardous environments.
Eaton solutions are widely applied in oil and gas, petrochemical, chemical, pharmaceutical and heavy industrial facilities where safety, reliability and international compliance are essential.
