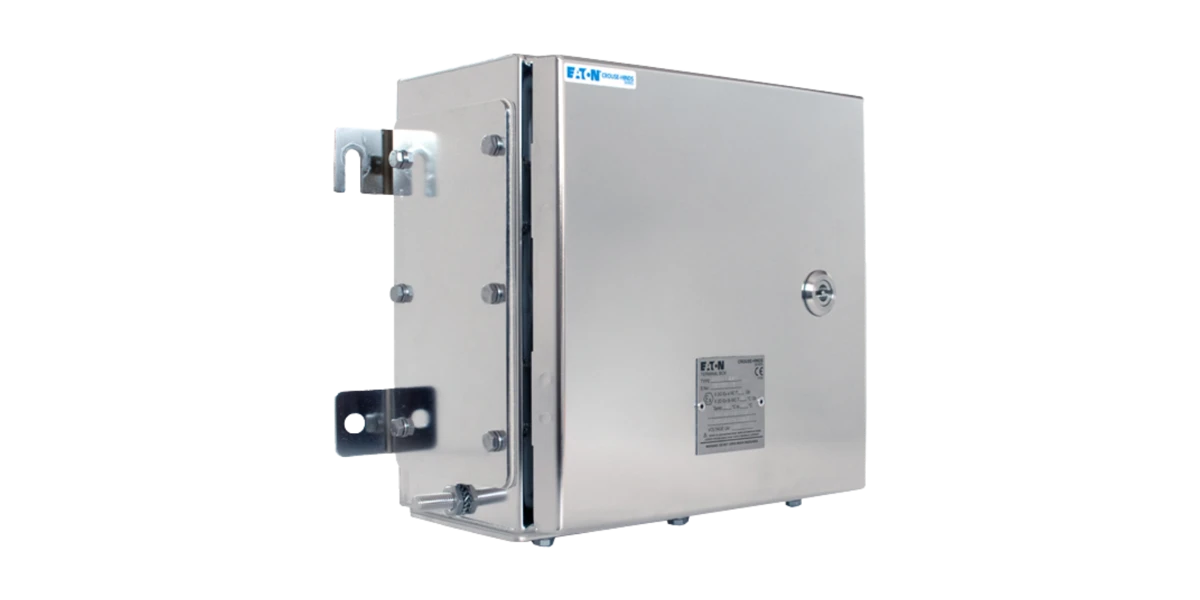

Ex-CELL is a globally certified enclosure and termination solution for Type 3S and Type 4X applications.
Crouse-Hinds series Ex-CELL enclosures are manufactured to meet the most demanding industrial and hazardous area environmental applications.
The Ex-CELL enclosure family provides the largest size range with flexible options. Over 100 standard sizes are available in stainless steel and painted steel, featuring unique design characteristics, precision manufacturing, and the highest quality materials.
Ex-CELL is the premier choice for instrumentation and electrical applications across the globe.
Ex-CELL enclosures are also available assembled as custom-configured and certified terminal boxes.
Available options include custom entries, cable glands and plugs with built-in terminals (Ex-e and Ex-i) and other equipment.
Certifications and compliances
Class I, Division 2, Groups A, B, C, D*
Class I, Zone 1
Class II, Division 2, Groups F, G
Class II, Zone 22
cULus to UL50 / C22.2 No. 94-M91
UL Listed E108296 (Hazardous Location)
UL Listed E115376 (Ordinary Location)
Type 3S, 4 – painted mild steel**; Type 4X / IP66 – stainless steel
ATEX and IECEx component certificates (BAS 15ATEX0099U and IECEx BAS15.0071U)
2G Ex eb IIC Gb or 2D Ex tb IIIC Db
TR-CU and EAC certified
* When terminal blocks or approved Class I, Division 2 devices are installed within the enclosure in accordance with NEC/CEC requirements. These enclosures are NOT explosionproof and will NOT contain an explosion. Installation of arcing and sparking devices which are not Class I, Division 2 rated or higher is NOT PERMITTED.
** Painted mild steel not available with ATEX or IECEx.
Design features
Available in a comprehensive range of sizes, each with various configurations for a multitude of applications
Unique design features, precision manufacturing and highest quality materials, making it the premier choice for instrumentation and electrical applications worldwide
Over 100 standard sizes in both stainless steel and painted steel*
Single door enclosures up to 63” x 48” x 16” (1600 x 1200 x 400 mm)
Flush mount enclosures
Eagle enclosures with a sloped water shedding design
* Painted mild steel not available with ATEX or IECEx.
Standard materials
Enclosure thickness: 1.2 mm – 316L stainless steel (standard); 304 stainless steel (optional)
Enclosure finish (stainless steel only): corrosion-resistant chromium enriched electro-polished surface
Gasket: foam-in-place silicone on lid (standard); cut silicone (optional)
Captive quarter turn clamp mechanism – stainless steel
Door hinges – stainless steel
Enclosure mounting: four external 3 mm stainless steel welded lugs, 11 mm Ø holes/slots
Equipment mounting: four (up to 10 depending on size) stand-off pillars, 9 mm Ø, 15 mm high, tapped M6 x 10, for rail/mounting plate
Enclosure earth: M10 external and internal stainless steel earth stud assembly
Mounting plate: 2 mm sheet steel with zintec finish (available in stainless steel)
Gland plates: rounded corners to eliminate sharp points; 3 mm thickness (standard); 6 mm thickness (optional)
Ordering Information
Model | Specificatio |
|---|---|
XLH231513B | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 229 x 152 x 127 mm enclosure size, 208 mm horizontal fixing center, 152 mm vertical fixing center, Cover fixed with hinges and bolts, Horizontal lugs, 690 Vac/Vdc |
XLHPS2315130 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 229 x 152 x 127 mm enclosure size, 208 mm horizontal fixing center, 152 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS2315131 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 229 x 152 x 127 mm enclosure size, 208 mm horizontal fixing center, 152 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS2315133 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 229 x 152 x 127 mm enclosure size, 208 mm horizontal fixing center, 152 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS2626150 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 260 x 260 x 152 mm enclosure size, 316 mm horizontal fixing center, 170 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS2626151 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 260 x 260 x 152 mm enclosure size, 316 mm horizontal fixing center, 170 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS2626153 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 260 x 260 x 152 mm enclosure size, 316 mm horizontal fixing center, 170 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS3020150 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 305 x 203 x 152 mm enclosure size, 259 mm horizontal fixing center, 230 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS3020151 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 305 x 203 x 152 mm enclosure size, 259 mm horizontal fixing center, 230 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS3020153 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 305 x 203 x 152 mm enclosure size, 259 mm horizontal fixing center, 230 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS3030150 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 305 x 305 x 152 mm enclosure size, 361 mm horizontal fixing center, 203 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS3030151 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 305 x 305 x 152 mm enclosure size, 361 mm horizontal fixing center, 203 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS3030153 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 305 x 305 x 152 mm enclosure size, 361 mm horizontal fixing center, 203 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS3030200 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 305 x 305 x 203 mm enclosure size, 361 mm horizontal fixing center, 203 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS3030203 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 305 x 305 x 203 mm enclosure size, 361 mm horizontal fixing center, 203 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4030150 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 305 x 152 mm enclosure size, 361 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4030151 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 305 x 152 mm enclosure size, 361 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS4030153 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 305 x 152 mm enclosure size, 361 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4030200 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 305 x 203 mm enclosure size, 361 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4030201 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 305 x 203 mm enclosure size, 361 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS4030203 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 305 x 203 mm enclosure size, 361 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4040150 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 406 x 152 mm enclosure size, 462 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4040151 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 406 x 152 mm enclosure size, 462 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS4040153 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 406 x 152 mm enclosure size, 462 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4040200 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 406 x 203 mm enclosure size, 462 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4040201 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 406 x 203 mm enclosure size, 462 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS4040203 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 406 x 203 mm enclosure size, 462 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4050150 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 508 x 152 mm enclosure size, 564 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4050151 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 508 x 152 mm enclosure size, 564 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS4050153 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 508 x 152 mm enclosure size, 564 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4050200 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 508 x 203 mm enclosure size, 564 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS4050201 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 508 x 203 mm enclosure size, 564 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS4050203 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 406 x 508 x 203 mm enclosure size, 564 mm horizontal fixing center, 267 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS5040150 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 406 x 152 mm enclosure size, 462 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS5040151 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 406 x 152 mm enclosure size, 462 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS5040153 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 406 x 152 mm enclosure size, 462 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS5040200 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 406 x 203 mm enclosure size, 462 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS5040201 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 406 x 203 mm enclosure size, 462 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS5040203 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 406 x 203 mm enclosure size, 462 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS5050150 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 508 x 152 mm enclosure size, 564 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS5050151 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 508 x 152 mm enclosure size, 564 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS5050153 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 508 x 152 mm enclosure size, 564 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS5050200 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 508 x 203 mm enclosure size, 564 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS5050201 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 508 x 203 mm enclosure size, 564 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS5050203 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 508 x 203 mm enclosure size, 564 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS5060200 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 610 x 203 mm enclosure size, 666 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS5060201 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 610 x 203 mm enclosure size, 666 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS5060203 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 508 x 610 x 203 mm enclosure size, 666 mm horizontal fixing center, 354 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS6040150 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 406 x 152 mm enclosure size, 462 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS6040151 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 406 x 152 mm enclosure size, 462 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS6040153 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 406 x 152 mm enclosure size, 462 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS6040200 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 406 x 203 mm enclosure size, 462 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS6040203 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 406 x 203 mm enclosure size, 462 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS6050150 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 508 x 152 mm enclosure size, 564 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS6050151 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 508 x 152 mm enclosure size, 564 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
XLHPS6050153 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 508 x 152 mm enclosure size, 564 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS6050200 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 508 x 203 mm enclosure size, 564 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS6050203 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 508 x 203 mm enclosure size, 564 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 3 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS6060150 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 610 x 152 mm enclosure size, 666 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 0 gland plates, Horizontal lugs, 690 Vac/Vdc |
XLHPS6060151 | Eaton Crouse-Hinds series Ex-CELL enclosure, 400A, 610 x 610 x 152 mm enclosure size, 666 mm horizontal fixing center, 445 mm vertical fixing center, Painted mild steel, 1 gland plate, Horizontal lugs, 690 Vac/Vdc |
About Eaton Crouse-Hinds
Eaton is a global power management company and a leading supplier of explosion-proof and hazardous area solutions. Through its Crouse-Hinds / CEAG and MTL Instruments product lines, Eaton provides certified lighting, power distribution, control and intrinsic safety systems for Zone 0, 1, 2, 21 and 22 hazardous environments.
Eaton solutions are widely applied in oil and gas, petrochemical, chemical, pharmaceutical and heavy industrial facilities where safety, reliability and international compliance are essential.
Viet Thang Loi Technology Company Limited is the official authorized distributor in Vietnam for Eaton MTL Instruments and Eaton Crouse-Hinds / CEAG, providing genuine products, technical consulting and after-sales services for explosion-proof and hazardous area projects.
