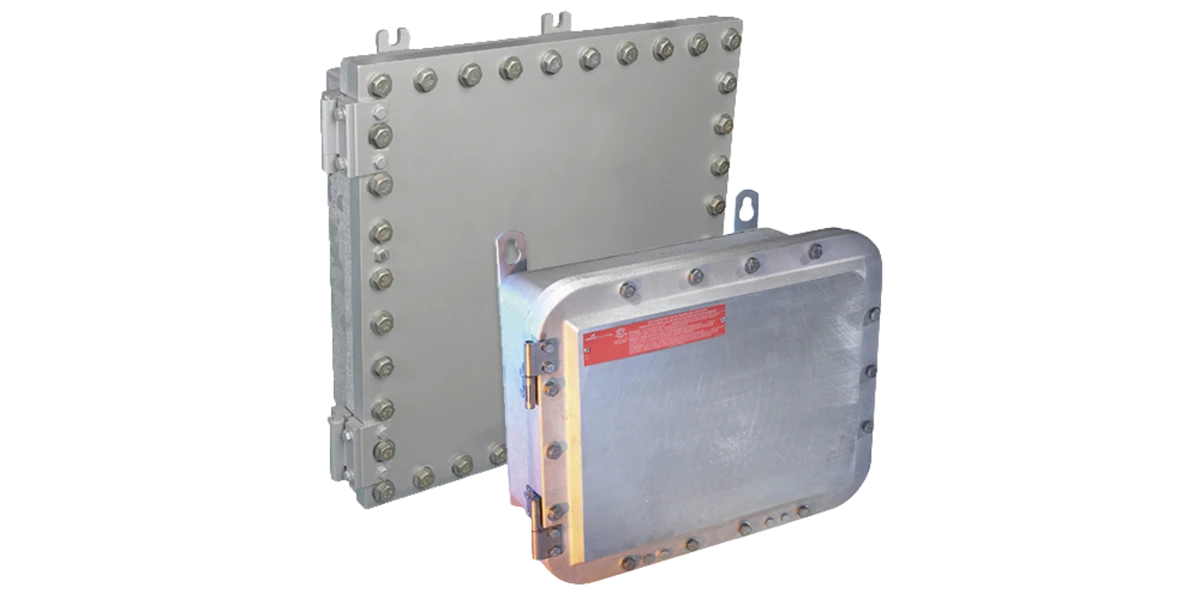

Eaton EJB Explosionproof Enclosures
Eaton EJB Explosionproof Enclosures
Certifications and compliances
NEC and CEC
Class I, Divisions 1 & 2, Groups B, C, D
Class I, Zones 1 & 2
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
UL1203
cUL to CSA standard C22.2 No. 30
Enclosure type 3, 3R, 4, 4X, 7BCD, 9EFG
IECEx
EN 60079-0 and EN 60079-1
IECEx certificate: IECEx ETL 13.0040U
ATEX
Ex d IIB + H2 T6, IP66
ATEX certificate: ITS08ATEX15797U
Design features
Style C boxes are supplied with aluminum plate covers as standard, allowing field addition of cover device holes
Stainless steel cover bolts (Style C only)
Ground joint cover opening provides maximum opening for pulling wires or mounting equipment
Body walls may be drilled and tapped for conduit entries as shown in listings
Stud bolts in diagonally opposite corners aid in aligning cover to body during installation (not furnished with hinged covers)
All Style C bodies feature captive, triple-lead, quick-release stainless steel hex head bolts with spring-loaded action indicating full bolt retraction
External flange design provides a wide, unobstructed cover opening for full interior accessibility
Square corners of the enclosure body maximize interior space and conduit entry area
Internal grounding lug for grounding enclosed equipment
Special neoprene cover gasket provides a watertight seal meeting NEMA 4 requirements and protects against water and corrosion
Enclosures are machined to accept field-installed mounting plates
Detachable mounting feet provide installation flexibility without replacing the enclosure
Optional stainless steel hinges allow easy access for inspection and maintenance
Enclosures are machined to accept field-installed hinges
IEC rated when ordered with ATEX suffix
Standard materials
Body and cover – copper-free aluminum
Gasket – neoprene
Cover bolts – stainless steel (Style C); steel (Style D)
Ordering Information
Full Model Selection Guide for Eaton Crouse-Hinds EJB Series
Part Number | Dimensions (Inch) | Material | Features / Options |
|---|---|---|---|
EJB060404 | 6" x 4" x 4" | Feraloy Iron | Style D, No hinge |
EJB060404 SA | 6" x 4" x 4" | Copper-free Aluminum | Style D, No hinge |
EJB080604 | 8" x 6" x 4" | Feraloy Iron | Style D, No hinge |
EJB080604 SA | 8" x 6" x 4" | Copper-free Aluminum | Style D, No hinge |
EJB080606 | 8" x 6" x 6" | Feraloy Iron | Style D, No hinge |
EJB080606 SA | 8" x 6" x 6" | Copper-free Aluminum | Style D, No hinge |
EJB080806 | 8" x 8" x 6" | Feraloy Iron | Style D, No hinge |
EJB080806 SA | 8" x 8" x 6" | Copper-free Aluminum | Style D, No hinge |
EJB100806 | 10" x 8" x 6" | Copper-free Aluminum | Style C, No hinge |
EJB100806 ATEX | 10" x 8" x 6" | Copper-free Aluminum | Style C, ATEX Certified |
EJB101008 SA | 10" x 10" x 8" | Copper-free Aluminum | Style D, No hinge |
EJB120604 SA | 12" x 6" x 4" | Copper-free Aluminum | Style D, No hinge |
EJB120804 | 12" x 8" x 4" | Feraloy Iron | Style D, No hinge |
EJB120804 SA | 12" x 8" x 4" | Copper-free Aluminum | Style D, No hinge |
EJB120808 SA | 12" x 8" x 8" | Copper-free Aluminum | Style D, No hinge |
EJB121204 | 12" x 12" x 4" | Copper-free Aluminum | Style C, No hinge |
EJB121204 S598 | 12" x 12" x 4" | Copper-free Aluminum | Style C, Left hinge |
EJB121206 | 12" x 12" x 6" | Copper-free Aluminum | Style C, No hinge |
EJB121206 MP S598 | 12" x 12" x 6" | Copper-free Aluminum | Style C, Left hinge & Mounting plate |
EJB121206 S598 | 12" x 12" x 6" | Copper-free Aluminum | Style C, Left hinge |
EJB121208 | 12" x 12" x 8" | Copper-free Aluminum | Style C, No hinge |
EJB121208 MP S598 | 12" x 12" x 8" | Copper-free Aluminum | Style C, Left hinge & Mounting plate |
EJB121208 S598 | 12" x 12" x 8" | Copper-free Aluminum | Style C, Left hinge |
EJB141006 SA | 14" x 10" x 6" | Copper-free Aluminum | Style D, No hinge |
EJB160404 | 16" x 4" x 4" | Feraloy Iron | Style D, No hinge |
EJB160404 SA | 16" x 4" x 4" | Copper-free Aluminum | Style D, No hinge |
EJB161606 | 16" x 16" x 6" | Copper-free Aluminum | Style C, No hinge |
EJB161606 MP S598 | 16" x 16" x 6" | Copper-free Aluminum | Style C, Left hinge & Mounting plate |
EJB161606 S598 | 16" x 16" x 6" | Copper-free Aluminum | Style C, Left hinge |
EJB161608 | 16" x 16" x 8" | Copper-free Aluminum | Style C, No hinge |
EJB161608 MP S598 | 16" x 16" x 8" | Copper-free Aluminum | Style C, Left hinge & Mounting plate |
EJB161608 S598 | 16" x 16" x 8" | Copper-free Aluminum | Style C, Left hinge |
EJB181206 | 18" x 12" x 6" | Copper-free Aluminum | Style C, No hinge |
EJB181206 ATEX | 18" x 12" x 6" | Copper-free Aluminum | Style C, ATEX Certified |
EJB181206 S598 | 18" x 12" x 6" | Copper-free Aluminum | Style C, Left hinge |
EJB181208 | 18" x 12" x 8" | Copper-free Aluminum | Style C, No hinge |
EJB181208 ATEX | 18" x 12" x 8" | Copper-free Aluminum | Style C, ATEX Certified |
EJB181208 MP S598 | 18" x 12" x 8" | Copper-free Aluminum | Style C, Left hinge & Mounting plate |
EJB181208 S598 | 18" x 12" x 8" | Copper-free Aluminum | Style C, Left hinge |
EJB241208 | 24" x 12" x 8" | Copper-free Aluminum | Style C, No hinge |
EJB241208 S598 | 24" x 12" x 8" | Copper-free Aluminum | Style C, Left hinge |
EJB241210 | 24" x 12" x 10" | Copper-free Aluminum | Style C, No hinge |
EJB241210 S598 | 24" x 12" x 10" | Copper-free Aluminum | Style C, Left hinge |
EJB241808 | 24" x 18" x 8" | Copper-free Aluminum | Style C, No hinge |
EJB241808 MP S598 | 24" x 18" x 8" | Copper-free Aluminum | Style C, Left hinge & Mounting plate |
EJB241808 S598 | 24" x 18" x 8" | Copper-free Aluminum | Style C, Left hinge |
EJB241810 | 24" x 18" x 10" | Copper-free Aluminum | Style C, No hinge |
EJB241810 S598 | 24" x 18" x 10" | Copper-free Aluminum | Style C, Left hinge |
EJB242408 | 24" x 24" x 8" | Copper-free Aluminum | Style C, No hinge |
EJB242408 MP S598 | 24" x 24" x 8" | Copper-free Aluminum | Style C, Left hinge & Mounting plate |
EJB242408 S598 | 24" x 24" x 8" | Copper-free Aluminum | Style C, Left hinge |
EJB242410 | 24" x 24" x 10" | Copper-free Aluminum | Style C, No hinge |
EJB242410 MP S598 | 24" x 24" x 10" | Copper-free Aluminum | Style C, Left hinge & Mounting plate |
EJB361208 | 36" x 12" x 8" | Copper-free Aluminum | Style C, No hinge |
EJB361208 S598 | 36" x 12" x 8" | Copper-free Aluminum | Style C, Left hinge |
EJB361808 | 36" x 18" x 8" | Copper-free Aluminum | Style C, No hinge |
EJB361808 S598 | 36" x 18" x 8" | Copper-free Aluminum | Style C, Left hinge |
EJB361810 | 36" x 18" x 10" | Copper-free Aluminum | Style C, No hinge |
EJB361810 S598 | 36" x 18" x 10" | Copper-free Aluminum | Style C, Left hinge |
EJB362408 | 36" x 24" x 8" | Copper-free Aluminum | Style C, No hinge |
