Eaton CEAG GHG41 Ex-e Control Stations.

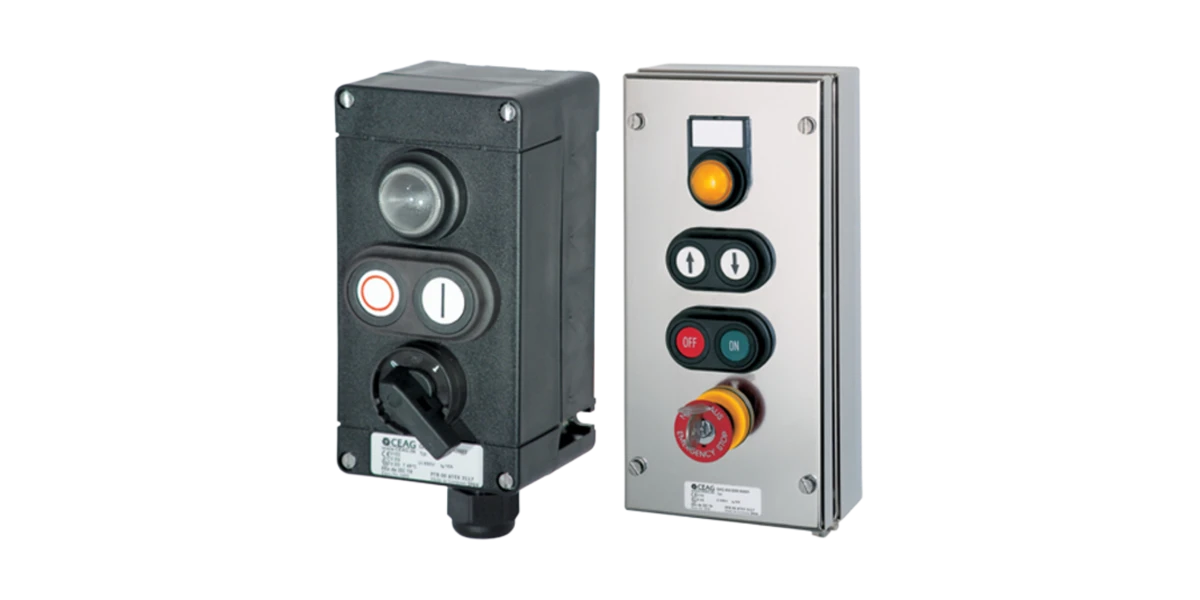

Eaton CEAG GHG41 Ex-e Explosion-protected Control Stations
The GHG41 was designed with low side walls, allowing for optimum cable connection. A variety of components are available, such as signal lamps, pushbuttons and switches, which can be quickly snapped in and out of the enclosure to facilitate cable entry feeding. Notches in the mounting rails prevent the built-in components from being twisted out of place.
Eaton CEAG GHG41 Ex-e Explosion-protected Control Stations
Certifications and compliances
Marking accd. to 94/9/EC: Ex II 2 G Ex ed ib m IIC T6; Ex II 2 D Ex tD A21 IP66 T80°C
EC-Type Examination Certificate: PTB 00 ATEX 3117
IECEx Certificate of Conformity: IECEx BKI 04.0003
Marking accd. to IECEx: Ex e II T6; Ex e ib IIC T6; Ex ed IIC T6; or Ex ed ib IIC T6
Permissible ambient temperature: -20°C to +40°C; -55°C to +55°C (optional)
Protection class: I
Degree of protection accd. to EN 60529: IP66
Design features – engineered for reliable performance in extreme environments
Internationally approved
Flat side walls
Quick fixing of all built-in components
Different enclosures can be combined
High mechanical, chemical and thermal resistance
Individual configuration
Clean-room applications (316L stainless steel version)
Standard materials used for our explosion-protected control stations
GHG 411:
Enclosure – black polyamide
GHG 414:
Enclosure – 316L stainless steel
Ordering Information
Full Model List: Eaton Crouse-Hinds CEAG AM72 Measuring Instruments
The AM72 series is specifically designed for integration with CEAG GHG 41 series control stations, providing reliable monitoring in Zone 1 and Zone 2 hazardous environments.
Part Number | Measuring Range | Housing Material | Measurement Type / Entry |
|---|---|---|---|
GHG4118281R0002 | 0-1 / 1.5A | Polyamide | Direct measurement, 1 x M25 Gland |
GHG4118281R0003 | 0-2.5 / 3.75A | Polyamide | Direct measurement, 1 x M25 Gland |
GHG4118281R0004 | 0-5 / 7.5A | Polyamide | Direct measurement, 1 x M25 Gland |
GHG4118281R0005 | 0-10 / 15A | Polyamide | Direct measurement, 1 x M25 Gland |
GHG4118281R0007 | 0-16 / 24A | Polyamide | Direct measurement, 1 x M25 Gland |
GHG4118282R0001 | 0-100% / 150% | Polyamide | CT connection n/1A, 1 x M25 Gland |
GHG4118282R0003 | 0-2.5 / 3.75A | Polyamide | CT connection n/1A, 1 x M25 Gland |
GHG4118282R0005 | 0-10 / 15A | Polyamide | CT connection n/1A, 1 x M25 Gland |
GHG4118282R0007 | 0-15 / 22.5A | Polyamide | CT connection n/1A, 1 x M25 Gland |
GHG4118282R0008 | 0-20 / 30A | Polyamide | CT connection n/1A, 1 x M25 Gland |
GHG4118282R0009 | 0-30 / 45A | Polyamide | CT connection n/1A, 1 x M25 Gland |
GHG4118282R0011 | 0-50 / 75A | Polyamide | CT connection n/1A, 1 x M25 Gland |
GHG4118282R0012 | 0-60 / 90A | Polyamide | CT connection n/1A, 1 x M25 Gland |
GHG4118282R0013 | 0-75 / 112.5A | Polyamide | CT connection n/1A, 1 x M25 Gland |
GHG4118282R0014 | 0-100 / 150A | Polyamide | CT connection n/1A, 1 x M25 Gland |
GHG4118285R0033 | 0-20 / 24 mA | Polyamide | Direct measurement (Moving coil), 1 x M25 |
GHG4118286R0035 | 4-20 / 24 mA | Polyamide | Direct measurement (Moving coil), 1 x M25 |
GHG4128281R0002 | 0-1 / 1.5A | Polyamide | Direct measurement, 1 x M25 (Type 412) |
GHG4128281R0003 | 0-2.5 / 3.75A | Polyamide | Direct measurement, 1 x M25 |
GHG4128281R0004 | 0-5 / 7.5A | Polyamide | Direct measurement, 1 x M25 |
GHG4128281R0005 | 0-10 / 15A | Polyamide | Direct measurement, 1 x M25 |
GHG4128281R0007 | 0-16 / 24A | Polyamide | Direct measurement, 1 x M25 |
GHG4128282R0002 | 0-1 / 1.5A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0003 | 0-2.5 / 3.75A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0005 | 0-10 / 15A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0008 | 0-20 / 30A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0010 | 0-40 / 60A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0011 | 0-50 / 75A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0012 | 0-60 / 90A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0013 | 0-75 / 112.5A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0014 | 0-100 / 150A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0016 | 0-200 / 300A | Polyamide | CT connection n/1A, White Scale, 1 x M25 |
GHG4128282R0018 | 0-300 / 450A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0019 | 0-400 / 600A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0020 | 0-500 / 750A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128282R0021 | 0-600 / 900A | Polyamide | CT connection n/1A, 1 x M25 |
GHG4128285R0033 | 0-20 / 24 mA | Polyamide | Direct measurement, 1 x M25 |
GHG4148181R0002 | 0-1 / 1.5A | 316L Stainless Steel | Direct measurement, Ø 21 mm Entry |
GHG4148181R0003 | 0-2.5 / 3.75A | 316L Stainless Steel | Direct measurement, Ø 21 mm Entry |
GHG4148181R0004 | 0-5 / 7.5A | 316L Stainless Steel | Direct measurement, Ø 21 mm Entry |
GHG4148181R0005 | 0-10 / 15A | 316L Stainless Steel | Direct measurement, Ø 21 mm Entry |
GHG4148181R0007 | 0-16 / 24A | 316L Stainless Steel | Direct measurement, Ø 21 mm Entry |
GHG4148181R0033 | 0-20 / 24 mA | 316L Stainless Steel | Direct (Moving coil), Ø 21 mm Entry |
GHG4148181R0035 | 4-20 / 24 mA | 316L Stainless Steel | Direct (Moving coil), Ø 21 mm Entry |
GHG4148182R0002 | 0-1 / 1.5A | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
GHG4148182R0003 | 0-2.5 / 3.75A | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
GHG4148182R0004 | 0-5 / 7.5A | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
GHG4148182R0005 | 0-10 / 15A | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
GHG4148182R0007 | 0-15 / 22.5A | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
GHG4148182R0008 | 0-20 / 30A | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
GHG4148182R0009 | 0-30 / 45A | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
GHG4148182R0010 | 0-40 / 60A | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
GHG4148182R0011 | 0-50 / 75A | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
GHG4148182R0012 | 0-60 / 90A | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
GHG4148182R0013 | 0-75 / 112.5A | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
GHG4148182R0033 | 0-100% / 150% | 316L Stainless Steel | CT connection n/1A, Ø 21 mm Entry |
