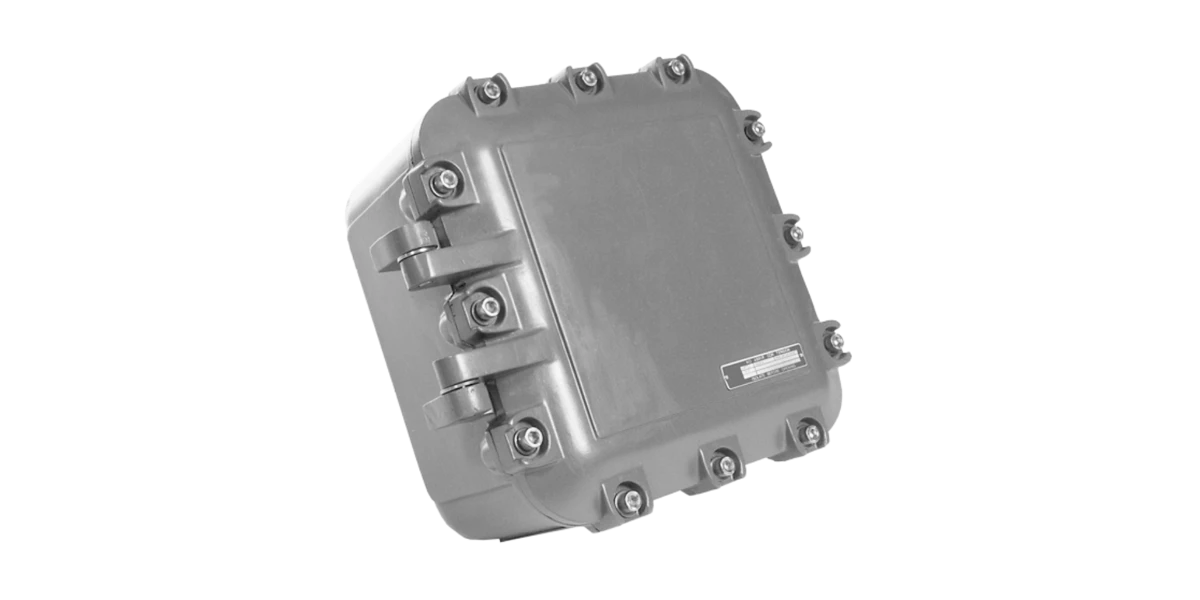

Eaton CEAG EJB and EJW IEC Ex d Explosion Protected Enclosures.
Eaton CEAG EJB and EJW IEC Ex d Explosion Protected Enclosures
Eaton CEAG EJB and EJW IEC Ex d Explosion Protected Enclosures
Approved for use in IEC Zones 1, 2, 21 and 22, Crouse-Hinds series CEAG EJB and EJW explosion protected enclosures are used in threaded rigid conduit systems in hazardous areas to function as a splice box, pull box, or equipment and device enclosure. The enclosures may be installed in indoor or outdoor applications.
Certifications and compliances
ATEX certificate – LOM 02ATEX3060U (empty enclosures):
Ex II 2G Ex d IIB
EN60079-0:2006
EN60079-7:2007
EN60079-18:2004
ATEX certificate – LOM 03ATEX2004X (custom control panels):
Ex II 2 G Ex d IIB T4...T6
Ex II 2(1) G Ex d[ia] IIB T4...T6
Ex II 2(2) G Ex d[ib] IIB T4...T6
Ex II 2(1/2) G Ex d[ia/ib] IIB T4...T6
EN60079-0:2006
EN60079-1:2007
EN60079-11:2007
Metallic enclosures:
Marking to 94/9/CE
Ex II 2 G - EEx d IIB T6 - T4 - T6
EC - type examination certificate
LOM 02ATEX3060U
Degree of protection
IP65 acc. EN60529
Components:
Marking to 94/9/CE
Ex II 2 G - EEx d IIB
EC - type examination certificate
LOM 02ATEX3060U
Degree of protection
IP65 acc. EN60529
Design features
Ground joint (bolted) construction throughout permits use in hazardous areas
Durable enclosure bodies with thick walls, factory drilled and tapped to meet IEC requirements for Zones 1, 2, 21 and 22 hazardous areas
Covers provided with a neoprene O-ring gasket to meet NEMA / EEMAC 4 requirements for a watertight seal
Internal grounding lug for grounding enclosed equipment
Ambient temperature range: -20°C to +55°C
Rated voltage: 690 V
Rated maximum current: up to 1200 A
Mounting plate included
Standard materials
Bodies – aluminum (EJB); welded steel (EJW)
Covers – aluminum
Epoxy powder coat finish is standard, internal and external
Ordering Information
Model | Specification |
|---|---|
NOR000001170020 | Eaton Crouse-Hinds series CEAG EJB/EJW control switch, 12A, Two-pole, Reversed 0-1 and rotary handle, Locked by padlock and label, Used with EJB and EJW series enclosures |
NOR000001170021 | Eaton Crouse-Hinds series CEAG EJB/EJW control switch, 25A, Two-pole, Reversed 0-1 and rotary handle, Locked by padlock and label, Used with EJB and EJW series enclosures |
NOR000001170023 | Eaton Crouse-Hinds series CEAG EJB/EJW control switch, 12A, Single-pole, Reversed 1-2 and rotary handle, Locked by padlock and label, Used with EJB and EJW series enclosures |
NOR000001170024 | Eaton Crouse-Hinds series CEAG EJB/EJW control switch, 12A, Two-pole, Reversed 1-2 and rotary handle, Locked by padlock and label, Used with EJB and EJW series enclosures |
NOR000001170025 | Eaton Crouse-Hinds series CEAG EJB/EJW control switch, 12A, Single-pole, Reversed 1-0-2 and rotary handle, Locked by padlock and label, Used with EJB and EJW series enclosures |
NOR000001170026 | Eaton Crouse-Hinds series CEAG EJB/EJW control switch, 12A, Two-pole, Reversed 1-0-2 and rotary handle, Locked by padlock and label, Used with EJB and EJW series enclosures |
NOR000001170027 | Eaton Crouse-Hinds series CEAG EJB/EJW control switch, 12A, Two-pole, Reversed 0-1 and rotary handle, Locked by padlock and label, Used with EJB and EJW series enclosures |
